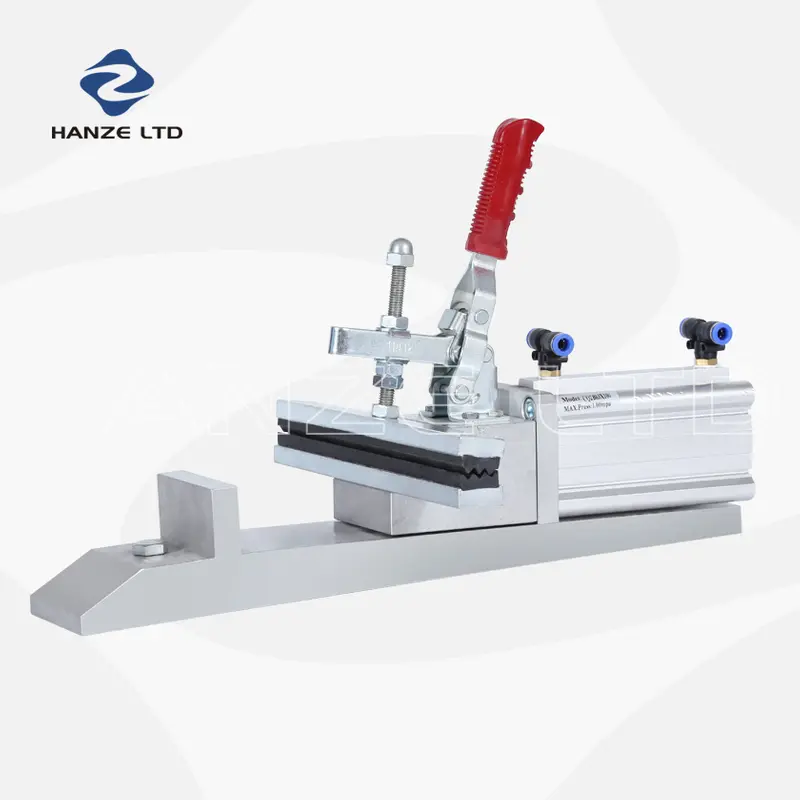

Pneumatic stretching device
Categories:

Pneumatic stretching device

Model: HZI-LWT-QDR002

Brand: HANZE LTD

  • Pneumatic Screen Stretcher
  • Model:HZI-LWT-QDR002
  • Cylinder Diameter:63 MM
  • Cylinder Stroke:100 MM
  • Clamp Width:25 CM
  • Max Tension:30 N/ CM2

Product Description

The machine is specially designed to stretch screens in screen-printing.

Good and strong aluminum/alloy body with high quality cylinder, good workmanship,longevity;
The pneumatic cylinder can supply the same air pressure to each clamps through a close air circulate line;

Configuration of the screen stretcher will be laid out in accordance with the number of clamps actually needed;

The screen stretcher is delivered including air supply, air tubes, maintenance unit, etc;

uniform tension as previously selected is applied by moving one single lever.

HANE SPM QDR 02 B



Model
HZI-LWT-QDR02
Clamp Length
25 cm
 Stroke diameter
63 mm
Stroke Length
100 cm
Air pressure
0.5-0.7 Mpa
Max mesh Tension
40 n/cm

Stroke

Stroke

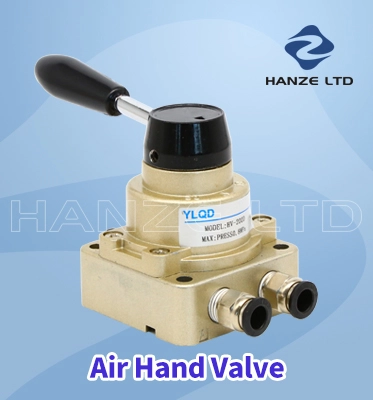

Air Hand Valve

Air Hand Valve
Duplication Unit

Duplication Unit

DistributorTube

Distributor&Tube
