Screen printing has become a widely used technique for producing personalized designs on a wide variety of materials, such as apparel, posters, and marketing items. A crucial component in the process is the screen printing frame, which secures the mesh screen and provides structural stability during printing. This guide will take you through all the essential aspects of screen printing frames, covering frame types, sizing, mesh details, preparation steps, printing methods, and ongoing maintenance.

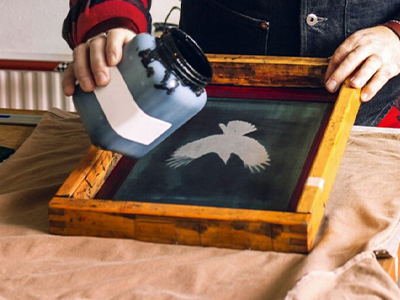

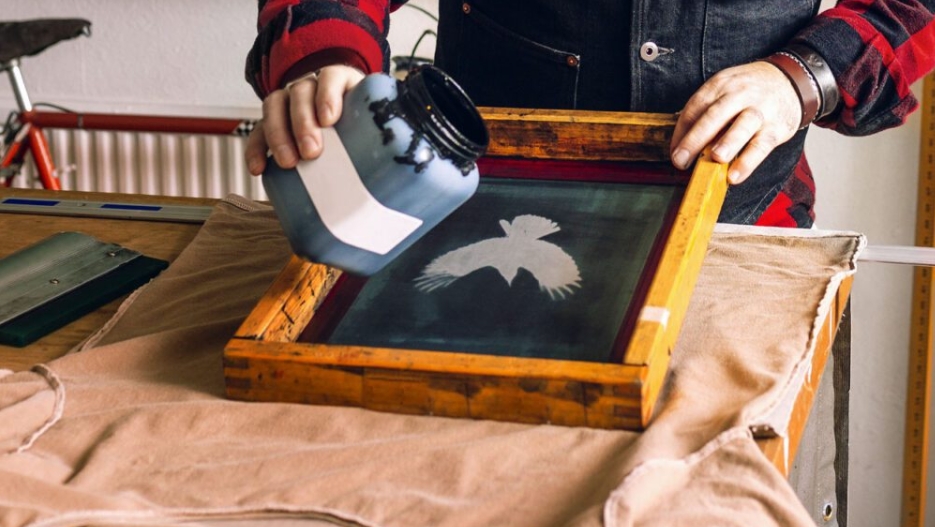

Wooden screen printing frames have long been the traditional go-to option. They are especially favored by beginners because of their cost-effectiveness and ease of access. However, one downside to wood frames is their tendency to warp when they absorb moisture, which can compromise print accuracy. In addition, they typically aren't suitable for sustaining the higher tension levels needed for finer mesh screens.

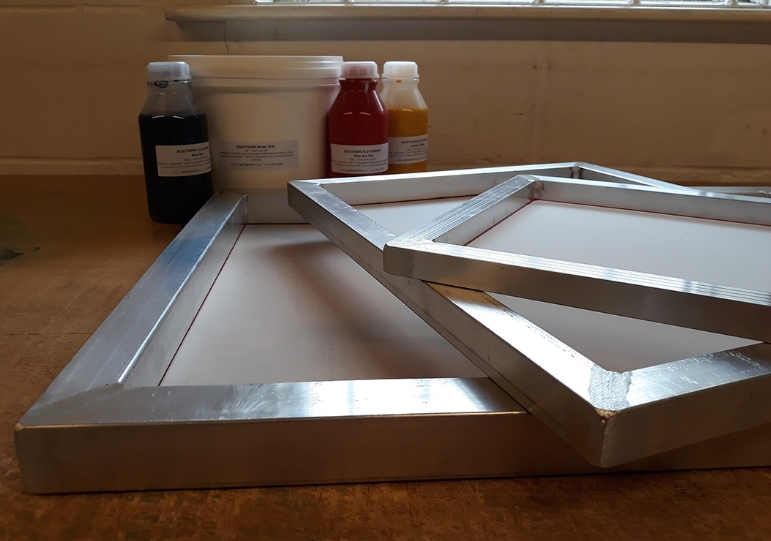

Professional screen printers frequently turn to aluminum frames due to their durability and resistance to warping. These frames are lightweight yet strong, making them suitable for high-tension setups and long-term use. Although aluminum options come at a higher price point than wooden ones, they are a smart long-term investment thanks to their robust build and ability to deliver consistent results over time.
For advanced printing needs, retensionable frames are a high-performance choice. These frames provide the flexibility to tighten or adjust the screen mesh tension as needed, helping maintain print accuracy over repeated use. They are excellent for large-scale production runs and compatible with a broad range of mesh counts. On the downside, retensionable frames tend to be more costly and require some technical skill to operate effectively.
Selecting an appropriate frame size depends largely on the size of your design and the item you're printing on. Ideally, the frame should provide a few inches of margin around the design on each side—generally, 2 to 3 inches is recommended. This ensures the design fits properly and the screen remains manageable during the printing process.
Mesh count refers to the number of threads in one inch of the screen mesh. Higher mesh counts are better suited for detailed designs and thin inks, while lower mesh counts are more effective with bold designs and thicker ink types. For those new to screen printing, a 110 mesh count offers a balanced starting point and works well for most basic projects.
Before you begin coating your screen with emulsion, it's important to thoroughly clean and degrease the mesh. This removes any dust, oils, or residues that might interfere with emulsion adhesion and print clarity. You can use a specialty screen printing degreaser or a mild dish soap, along with a soft brush. Be sure to rinse the screen thoroughly and allow it to dry completely before moving on.
Once the mesh is clean and dry, it's time to apply the light-sensitive emulsion. The emulsion blocks ink from flowing through unwanted areas and serves as the stencil for your design. Use a scoop coater to spread the emulsion evenly across the mesh, avoiding oversaturation. After coating, place the screen in a dark area to dry thoroughly before exposure.
When the emulsion has dried, the next step is exposure to UV light. Position your design (printed on transparency film) over the screen and expose it to a UV light source for the recommended time. The UV light hardens the emulsion except in the areas blocked by your design. After exposure, rinse the screen gently with water; the unexposed emulsion will wash out, leaving behind a clean stencil of your artwork.

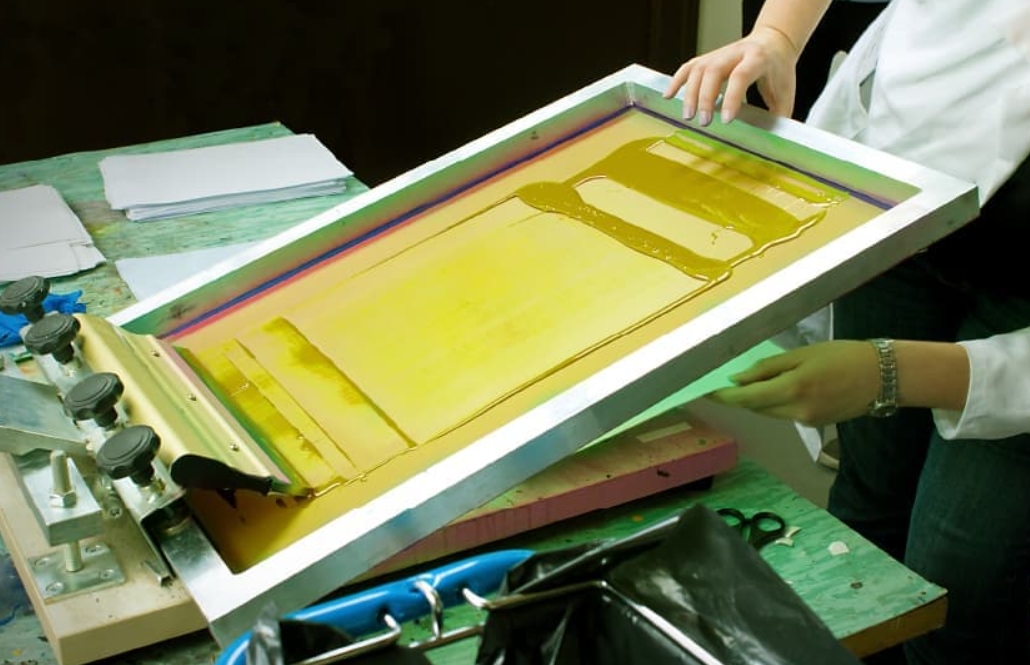

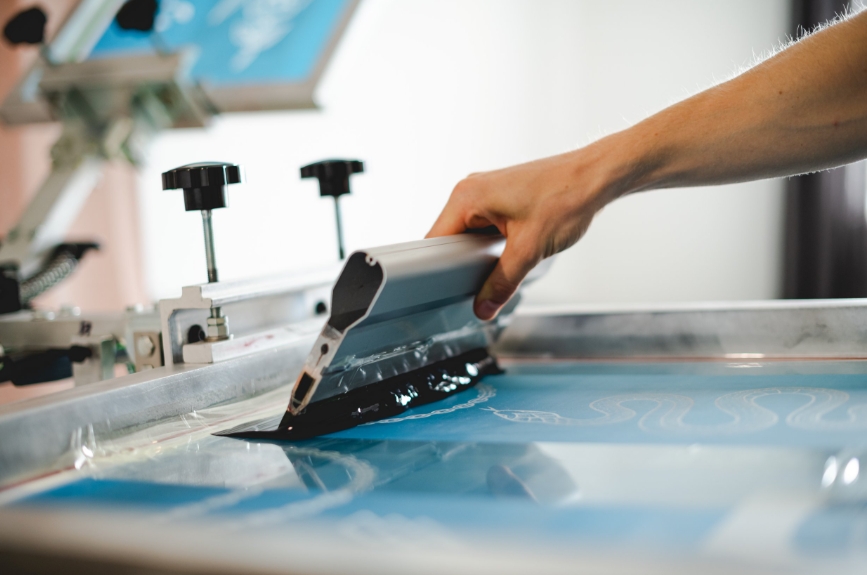

Printing with one color is the most straightforward screen printing technique. It involves using a single screen with one ink color. After aligning your prepared frame over the substrate, pour ink onto the mesh and use a squeegee to pull it across the screen evenly. This pushes the ink through the open stencil areas onto the substrate. Once printed, carefully lift the screen and allow the item to dry.
For multi-color designs, you'll need to use a separate screen for each color. To ensure precise alignment, use registration marks when positioning each screen. Apply each ink color individually, allowing one to dry before adding the next. This method can create vibrant and complex prints but demands greater attention to detail and setup.
Four-color process printing, also known as CMYK printing, uses cyan, magenta, yellow, and black inks to produce full-color images. Your design must be separated into four individual color channels using design software. Each ink is applied in a specific sequence, with careful registration ensuring that the overlapping inks blend to form a wide range of colors.
To extend the lifespan of your screen printing frames, store them in a dry, clean, and climate-controlled space. Avoid stacking frames directly on top of each other to prevent pressure damage to the mesh.

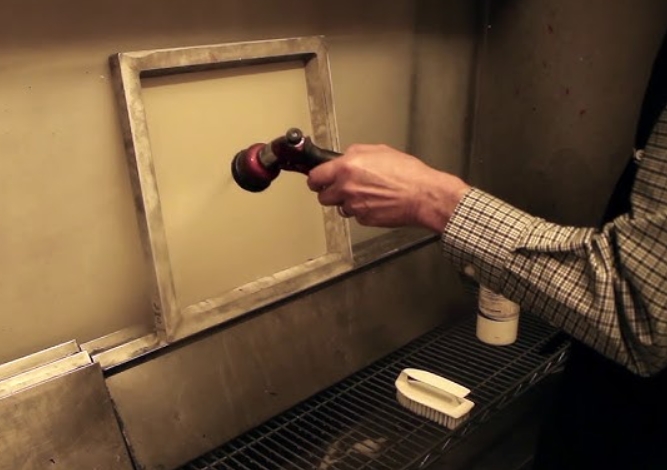

After use, clean your frames by removing excess ink and rinsing the mesh with water. If you're planning to reuse the screen for a new design, apply an emulsion remover to dissolve the hardened stencil. After thoroughly rinsing and drying, the screen will be ready for a new emulsion coating.
Screen printing frames are a foundational element of any successful screen printing setup. By understanding the various frame types, knowing how to select the right size and mesh count, and learning how to properly prepare and care for your frames, you can consistently produce high-quality prints. With time, experimentation, and the right techniques, you'll master the art of screen printing and bring your creative ideas to life with clarity and precision.
• What's the difference between a pre-stretched screen and a retensionable frame?
Pre-stretched screens come with fixed tension and are ready to use, while retensionable frames allow you to manually adjust mesh tension, offering longer life and more precision for professional use.
• Can I use different mesh counts on the same design?
Yes, using different mesh counts for underbase and detail layers is common. For instance, a lower mesh for a white base and a higher mesh for color detail can improve overall sharpness.
• How long does emulsion typically last on a screen?
Once applied, emulsion can remain usable for a few weeks to several months, depending on storage conditions and the type of emulsion used. Screens should be kept in a cool, dark place to extend emulsion life.
• What causes ghost images on a screen?
Ghosting occurs when ink stains or emulsion residue remain after reclaiming. Using proper reclaiming chemicals and scrubbing techniques can minimize or eliminate ghost images.
• Should I use wooden or aluminum frames for water-based inks?
Aluminum frames are better suited for water-based inks because they resist moisture-related warping, unlike wooden frames which may absorb water and distort over time.
• Can screen printing frames be used more than once?
Absolutely — screen printing frames are reusable across multiple projects. After each print, it's important to clean off the leftover ink and rinse the mesh thoroughly. When you're ready to reuse the frame with a new design, apply emulsion remover to clear the old stencil, rinse it again, and let it dry completely before recoating with fresh emulsion.
• What's the best way to determine the right mesh count for my frame?
Choosing the right mesh count depends on your artwork's complexity and the type of ink you're planning to use. Finer, more detailed prints benefit from higher mesh counts, while bold designs and thicker inks perform better with lower mesh. If you're just starting out, a 110 mesh count is a great all-purpose option for general use.
• Is it okay to reuse the same screen for different ink colors in one design?
While it's technically possible to reuse a single screen for multiple colors by cleaning it thoroughly between uses, it's not ideal. For the best registration and cleanliness in your final print, it's recommended to use a separate screen for each color. Multi-color and CMYK printing processes rely on this separation for accurate results.
• Which frame material should I use for screen printing?
For most professional applications, aluminum frames are the top choice. They're strong, lightweight, and don't warp under tension or moisture. Wooden frames can work for simpler jobs or beginners, but they may deform over time and aren't ideal for high-tension mesh. Retensionable frames allow tension adjustments on the go, but they cost more and require some expertise to operate effectively.
• What's the proper method for cleaning a screen printing frame after printing?
Once you're done printing, scrape off any remaining ink with a spatula or squeegee. Then wash the mesh gently with water, using a soft brush if needed. If you want to reuse the screen for a new design, apply an emulsion remover to break down the old emulsion, rinse the screen thoroughly, and let it dry before applying a fresh layer.
