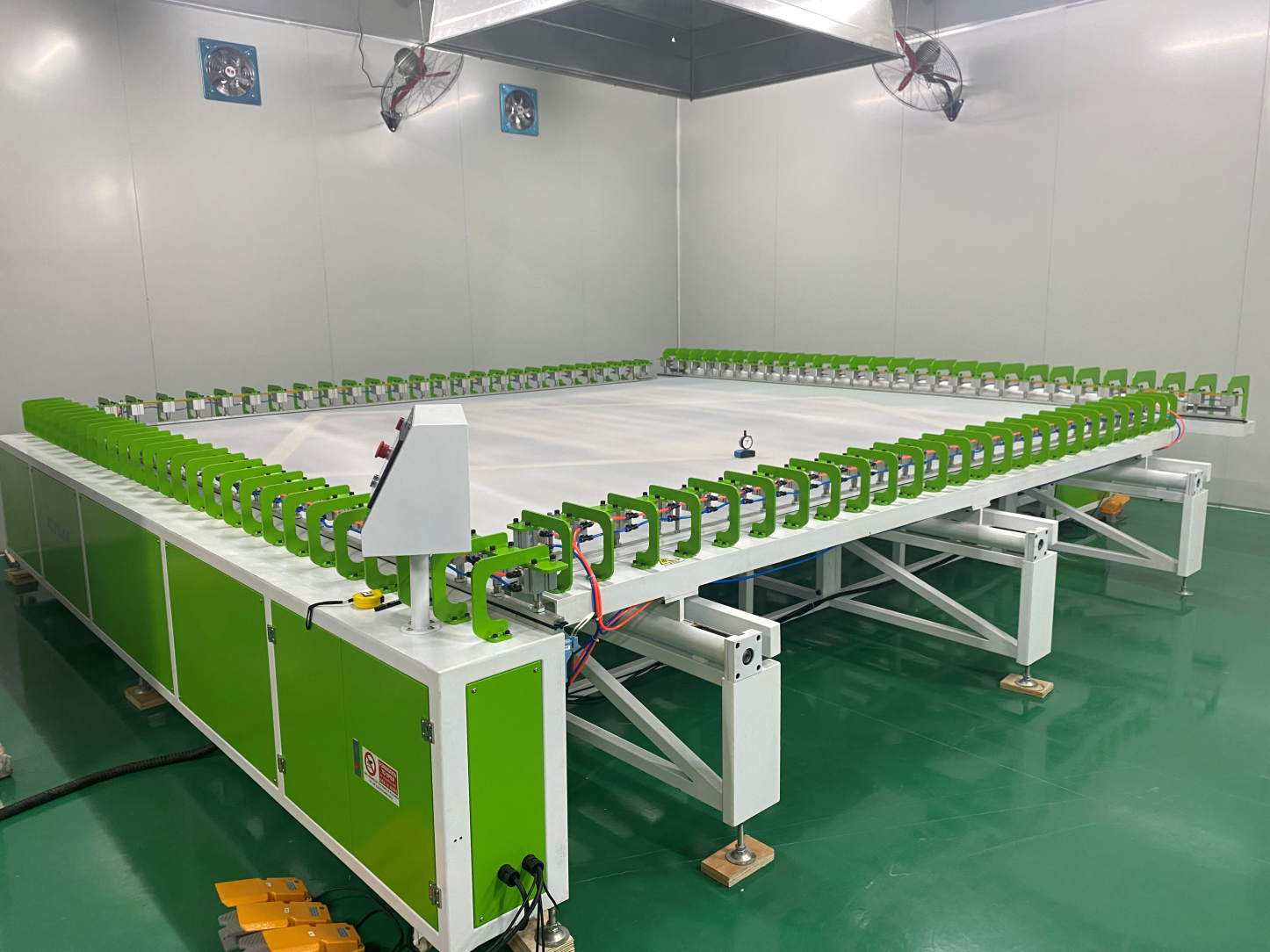

ALW-1545
HANZE LTD
Model Type | ALW-1545 |
Max mesh stretching size (mm) | 1500*4500 |
Min mesh stretching size (mm) | 900*4500 |
Max tension (n/cm) | 65N |
Total power | 2.5KW |
Power supply | 3P,380V,50HZ |
Tension accuracy | Max±0.5N |
Gearshift transmission mode | Variable frequency motor |
Mesh stretching mode | Electric control mesh stretching stroke |
Mesh lifting mode | Electric control mesh lifting stroke |
Mesh stretching transmission mode | Screw drive |
Machine weight | Around 1800kg |
Machine size (mm) | 2240*5560*800mm |
** Please note due to the machine size is over the container width, the machine need be disassembled before loading.
1. High Tension Capability
• Independently adjustable transverse and longitudinal tension
• Maximum design tension reaches 65N, meeting high-precision screen printing needs
2. Automatic Frame Size Adaptation
• Supports various screen frame specifications
• Stepless electric adjustment allows automatic contraction to fit the required frame size
3. All-Side Integrated Mesh Clamps with Smart Corner Design
• Four-sided integrated clamps ensure uniform tension
• Each corner features independently controlled angle cylinders for precise alignment
4. Patented Dual Aluminum Mesh Pulling Head
• Utilizes double aluminum high-strength heads for enhanced durability
• Dovetail groove design prevents mesh contact with metal, reducing breakage risk
• Rubber is tightly locked without glue—more efficient and cleaner
• Flat-tooth clamping mouth ensures extended chuck lifespan
5. Dual Speed Control for Mesh Positioning and Tensioning
• Fast mode for positioning and mesh alignment
• Slow mode for accurate tension control during mesh pulling
• Powered by frequency conversion technology
6. Electric Lifting System for Frame Height Adjustment
• The screen printing stretching machine is equipped with an electric lift system
• Frame height is adjustable for different operator needs or working scenarios
7. Dual Operation Modes
• Operate through HMI touch panel or manual handle switch, offering flexible user control
This electronic automatic stretching machine is widely used in industrial screen printing workshops and frame preparation departments. It supports high-precision stretching of nylon, polyester, and stainless steel meshes—ideal for producing fine and repeatable screen prints.
• One-time mesh stretching without external platform
• Supports a variety of mesh materials and screen sizes
• Built-in safety and anti-damage mesh design
• Enhanced lifespan of components and clamps
• Streamlined workflow with automatic adjustments
As a professional screen printing equipment supplier, we provide global OEM service and technical support for bulk orders. For pricing, availability, or customization, please Contact Us today.
