Monofilament Polyester Screen Printing Mesh

Model: /

Brand: HANZE LTD

Material: 100% monofilament polyester yarn
Model Number:DPP / PET
Color:White,Yellow,Black,Orange

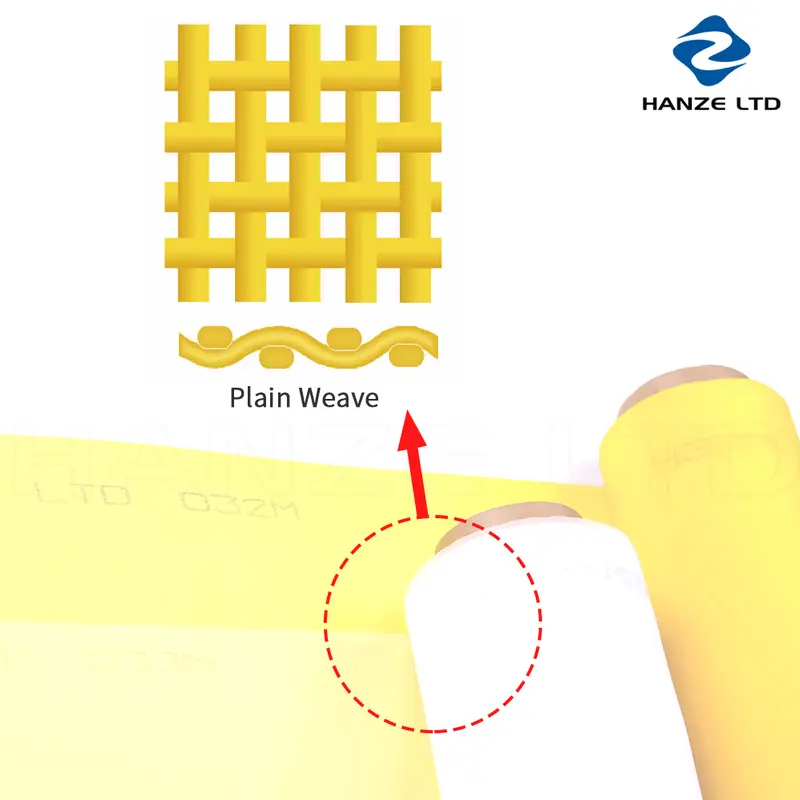

Weave Type:Plain Weaving
Monofilament Style:YES
Elongation Rate:Low
Thread Dia.:27micron – 400 micron
Mesh Count By CM:6T — 180T
Mesh Count by INCH:15 Mesh — 460 Mesh
Width:60cm –375 cm
Roll Length:30m/50m/100m per roll or as request

Inquire

Product Description

Monofilament Screen Printing Mesh

Monofilament Polyester Mesh is woven from yarn that is extruded from heated polyester into a single strand.
The extruded thread is the spun to a precise diameter.
Conventional monofilament polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch.
At excessive tension levels, the thread reaches its “plastic deformation” point, and the screen will no longer hold tension.
Monofilament polyester is still suitable for non-critical printing applications.

Production Ability

10000 +
Square Meter
THIS AREA CAN BE EDITED AND LET YOU TO INTRODUCE
150 +
Weave Machine
THIS AREA CAN BE EDITED AND LET YOU TO INTRODUCE
50 +
Professional Worker
THIS AREA CAN BE EDITED AND LET YOU TO INTRODUCE

	MESH COUNT		Thread Diameter	Opening	Open Area	Thickness	Theoretocal Ink Volume	Recommend Tension
	Tolerance ±3			Opening	Open Area	Thickness	Theoretocal Ink Volume	Recommend Tension
	/CM	/INCH		μm	%	μm	g/m²	n/cm2
PET® 6/15-400 PW	6	15	400	1463	75	452±7	337.6	***
PET® 10/25-200 PW	10	25	200	816	65	400±7	258.1	42
PET® 10/25-250 PW	10	25	250	766	57	445±7	253.0	60.0
PET® 12/30-140 PW	12	30	140	707	70	270±7	188.2	50.0
PET® 12/30-250 PW	12	30	250	597	50	498±7	247.5	**
PET® 15/38-200 PW	15	38	200	435	47	385±7	180.7	**
PET® 16/40-90 PW	16	40	90	545	74	171	128.5	***
PET® 16/40-100 PW	16	40	100	461	58	238	139.0	***
PET® 16/40-140 PW	16	40	140	461	58	238	139.0	***
PET® 16/40-180 PW	16	40	180	455	51	352±7	180.8	56.0
PET® 20/50-80 PW	20	50	80	399	69	136	93.0	***
PET® 20/50-100 PW	20	50	100	380	62	170	105.0	50.0
PET® 20/50-140 PW	20	50	140	347	48	255	123.0	52.0
PET® 24/60-80 PW	24	60	80	320	63	136	86.0	***
PET® 24/60-100 PW	24	60	100	323	58	185±7	107.9	48.0
PET® 24/60-120 PW	24	60	120	303	51	220±7	112.9	42.0
PET® 24/60-140 PW	24	60	140	283	45	252±7	112.8	48.0
PET® 28/70-70 PW	28	70	70	293	65	113±7	73.7	46.0
PET® 28/70-100 PW	28	70	100	244	50	170	85.0	***
PET® 28/70-140 PW	28	70	140	223	38	245±7	92.5	***
PET® 32/80-55 PW	32	80	55	263	68	95±7	65.0	***
PET® 32/80-64 PW	32	80	64	254	64	107±7	68.3	28.0
PET® 32/80-70 PW	32	80	70	248	61	123±7	74.9	28.0
PET® 32/80-80 PW	32	80	80	221	53	136	73.0	40.0
PET® 32/80-100 PW	32	80	100	218	47	181±7	85.1	42.0
PET® 32/80-120 PW	32	80	120	198	39	223±7	86.5	42.0
PET® 34/86-100 PW	34	86	100	184	42	170	71.0	35.0
PET® 36/90-55 PW	36	90	55	227	65	95±7	61.6	***
PET® 36/90-64 PW	36	90	64	190	56	112±7	62.7	***
PET® 36/90-80 PW	36	90	80	188	49	136	66.0	49.0
PET® 36/90-90 PW	36	90	90	192	46	170±7	78.9	***
PET® 36/90-100 PW	36	90	100	182	42	189±7	78.8	42.0
PET® 36/90-120 PW	36	90	120	162	33	230±7	76.0	48.0
PET® 39/100-55 PW	39	100	55	199	61	98±7	60.2	24.0
PET® 39/100-64 PW	39	100	64	190	56	112±7	62.7	***
PET® 39/100-71 PW	39	100	71	176	50	121	61.0	***
PET® 39/100-80 PW	39	100	80	174	47	144±7	67.6	31.0
PET® 39/100-100 PW	39	100	100	154	37	185±7	68.1	***
PET® 43/110-55 PW	43	110	55	176	58	98±7	56.9	***
PET® 43/110-64 PW	43	110	64	161	49	122±7	59.3	***
PET® 43/110-80 PW	43	110	80	151	43	140±7	59.9	35.0
PET® 47/120-55 PW	47	120	55	157	55	101±7	55.4	29.0
PET® 47/120-64 PW	47	120	64	148	49	112±7	54.6	***
PET® 48/122-70 PW	48	122	70	142	45	125±7	56.1	32.0
PET® 51T/130-71 PW	51	130	71	126	41	125±10	48.9	***
PET® 53/135-48 PW	53	135	48	140	55	80±7	44.4	***
PET® 53/135-55 PW	53	135	55	127	48	102±7	51.1	29.0
PET® 54/137-64 PW	54	137	64	118	42	115±7	50.1	30.0
PET® 54/137-71 PW	54	137	71	112	37	130±7	51.3	***
PET® 59/150-48 PW	59	150	48	121	51	81±7	41.6	***
PET® 59/150-55 PW	59	150	55	114	48	102±7	46.5	30.0
PET® 59/150-64 PW	59	150	64	105	39	114±7	44.1	32.0
PET® 59/150-71 PW	59	150	71	99	34	122	41.5	***
PET® 62/157-55 PW	62	157	55	103	41	94	38.0	***
PET® 62/157-64 PW	62	157	64	95	34	109	37.0	32.0
PET® 64/160-55 PW	64	160	55	96	39	103±5	43.2	30.0
PET® 64/160-64 PW	64	160	64	88	33	118±5	41.1	35.0
PET® 68/173-55 PW	68	173	55	92	39	102±5	40.0	28.0
PET® 72/180-48 PW	72	180	48	91	43	82±5	35.2	28.0
PET® 72/180-55 PW	72	180	55	84	37	95±5	34.7	33.0
PET® 77/195-48 PW	77	195	48	82	40	83±5	33.1	28.0
PET® 77/195-55 PW	77	195	55	75	33	100±5	33.3	29.0
PET® 80/200-48 PW	80	200	48	77	38	84±5	31.9	27.0
PET® 80/200-55 PW	80	200	55	70	31	100±5	31.4	28.0
PET® 90/230-40 PW	90	230	40	68	38	68	26.0	***
PET® 90/230-48 PW	90	230	48	62	32	85±5	27.1	25.0
PET® 100/255-40 PW	100	255	40	60	36	72±3	26.0	28.5
PET® 110/280-40 PW	110	280	40	51	31	70±3	22.0	29.6
PET® 120/305-31 PW	120	305	31	52	39	53±3	20.9	29.0
PET® 120/305-34 PW	120	305	34	49	35	65±3	22.7	30.5
PET® 120/305-40 PW	120	305	40	43	27	72±3	19.4	32.0
PET® 130/330-34 PW	130	330	34	36	26	58	14.0	***
PET® 140/355-31 PW	140	355	31	41	32	58±3	19.8	25.0
PET® 140/355-34 PW	140	355	34	38	28	61±3	17.0	30.0
PET® 150/380-27 PW	150	380	27	34	30	46	14.0	***
PET® 150/380-31 PW	150	380	31	36	29	60±3	17.4	26.0
PET® 150/380-34 PW	150	380	34	33	2	62	14.9	3.0
PET® 165/420-27 PW	165	420	27	33	30	48±3	14.6	***
PET® 165/420-31 PW	165	420	30	29	23	56±3	13.1	28.0
PET® 180/460-27 PW	180	460	27	27	26	44.0	11.4	***

Mainly usage for different mesh count as following:

Grades	Usage
21T, 24T	Beach towels, Pennant inks,Giltter inks, Thicker inks.
34T,32～36T, 39T, 43	Textile inks, Opaque inks textile, T-shirts
48T, 51T,54T, 55T	Textile inks, Finer textile design, Water based inks.
62T, 64T,68T,72T	Enamel inks, Very fine textile ink or course plastisol ink printing
77T,80T	Paper & Board inks, & textile
90T,100T	Vinyl inks, Plastic inks, Plastisol inks,Solvent based
110T, 120T,130T, 140T	Halftone printing, Paper & Board Vinyl Plastic, Plastisol ect..
150T,165	U.V. printing, or very fine halftone work, solvent inks
