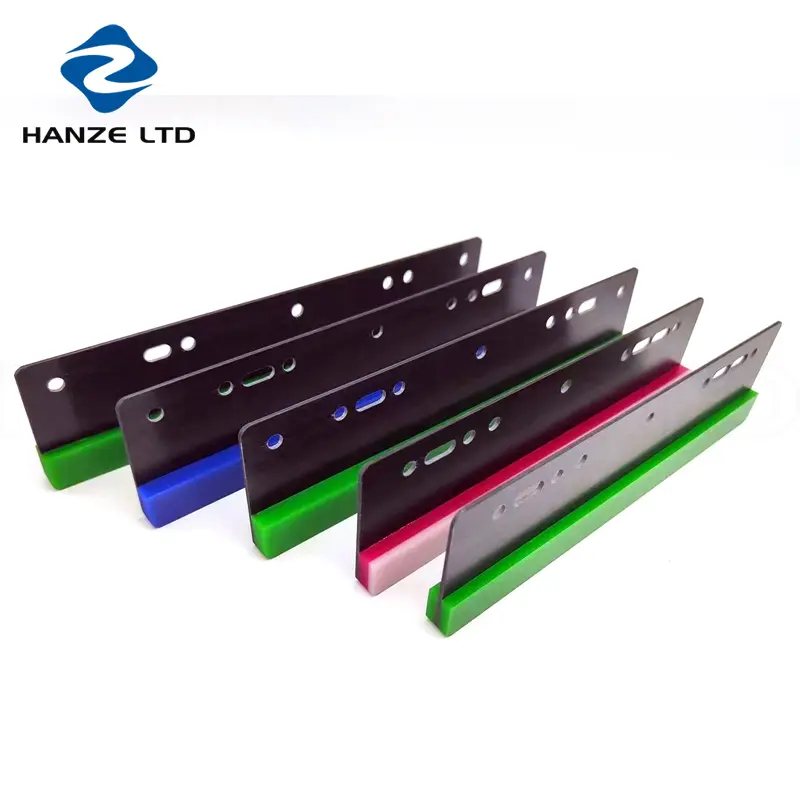

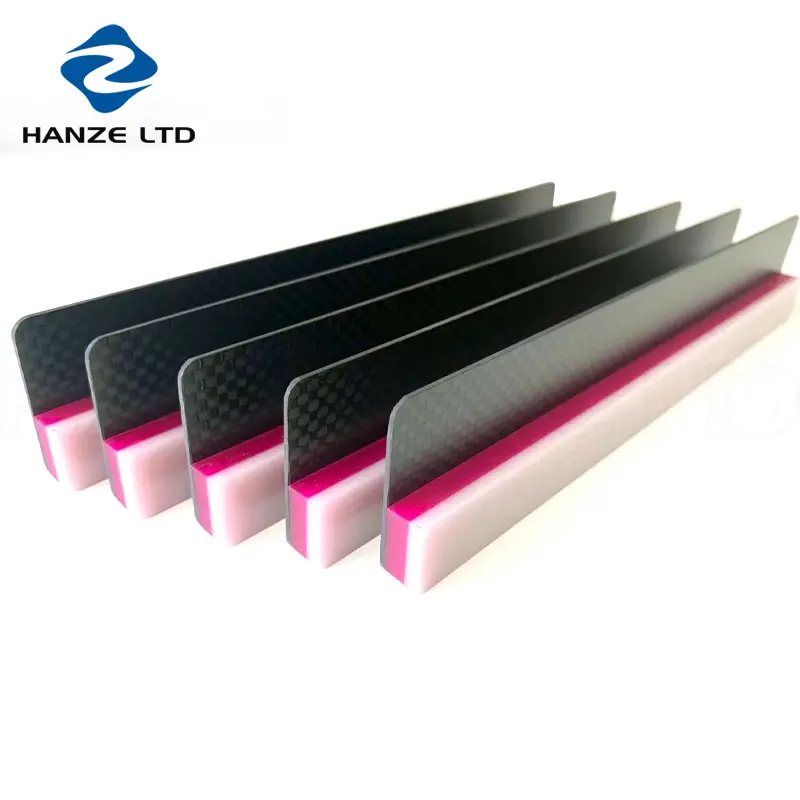

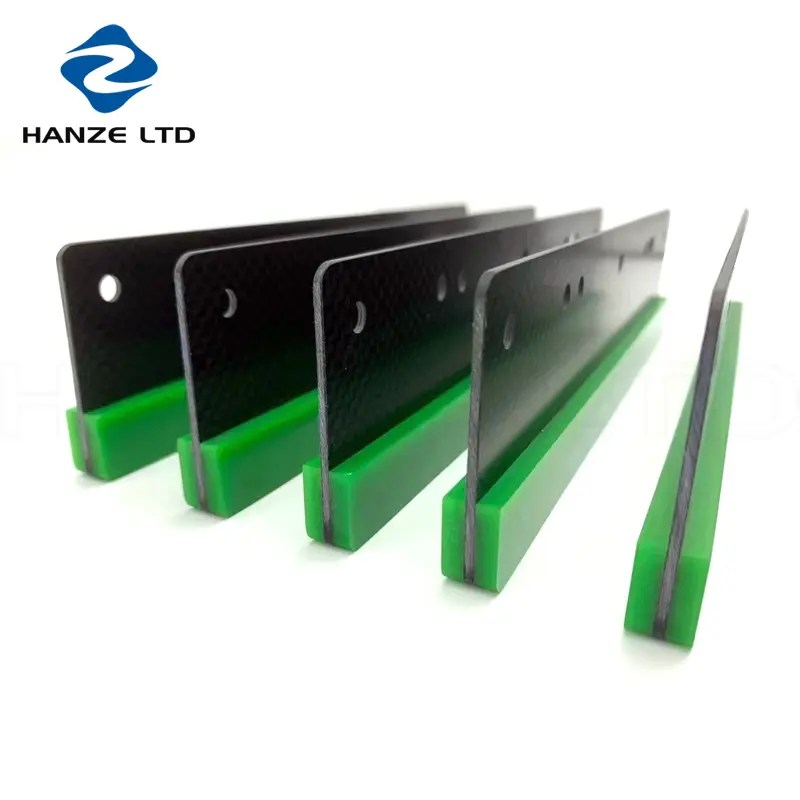

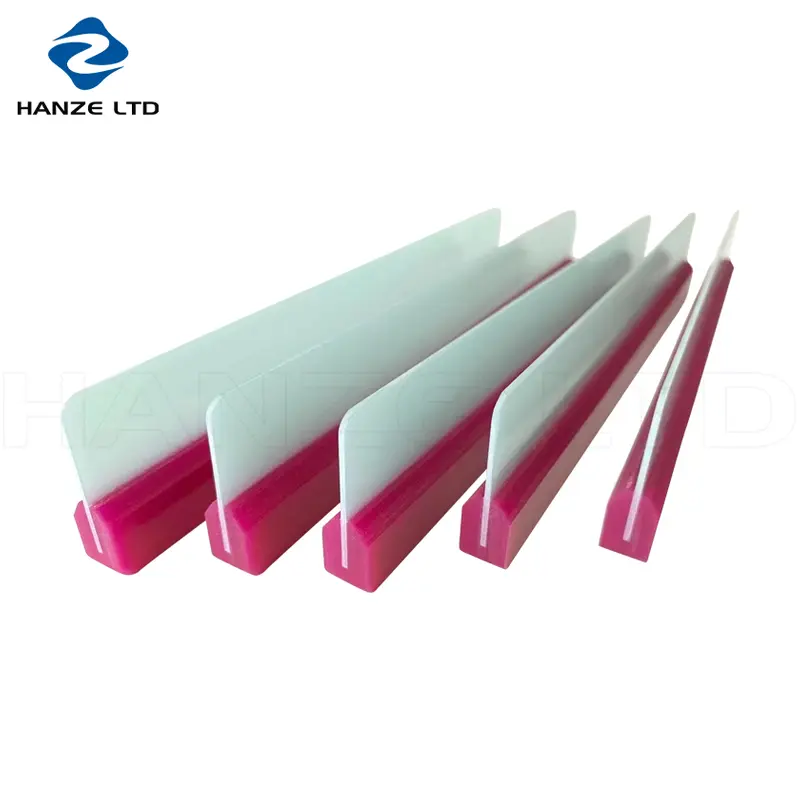

The Fiber Glass Board Squeegee / FGB Squeegee is an industrial-grade fiberglass squeegee designed for flat-bed screen printing machines. Compared with standard PU-only solutions, the fiberglass composite backplate improves stroke rigidity and pressure distribution—helping you maintain consistent ink/paste deposit across long runs and tight tolerances.
The fiberglass board backing supports more even force distribution across the stroke, helping reduce thickness variation and improving print-to-print consistency—especially valuable in paste printing and fine pattern work.
The polyurethane edge is engineered for harsh production environments, offering strong resistance to inks, solvents, and abrasion—ideal for industrial printing lines with frequent cleaning and chemical exposure.
A well-defined, ultra-sharp printing edge helps keep line definition and paste transfer stable across extended runs, lowering adjustment frequency and improving output consistency.
The FGB structure is designed for repetitive mechanical loading and production rhythms, supporting stable performance in high-frequency use scenarios.
The design supports quick replacement and maintenance workflows, helping production teams shorten setup time and reduce stoppages during line changeover.
By stabilizing deposit behavior and reducing rework/variation, the FGB squeegee supports efficient paste usage and consistent print layers—especially in long-run production.
All dimensions and hardness levels can be customized based on production needs.
| Specification | Details |
|---|---|
| Product Name | Fiber Glass Board Squeegee / FGB Squeegee |
| Squeegee Edge Type | Ultra-sharp polyurethane (PU) printing edge |
| Backing Material | High-strength fiberglass composite |
| Edge Width Options | Customizable (e.g., 25mm / 35mm / 45mm) |
| Blade Thickness | Standard: 5mm / 7mm / 9mm (custom sizes available) |
| Hardness Range | Shore A 65 / 75 / 85 (per request) |
| Thermal Stability | Low thermal expansion for dimensional stability |
| Chemical Resistance | Excellent resistance to acids, solvents, and inks |
| Machine Compatibility | Compatible with major flat-bed screen printing machines |
| Country of Origin | Made in China (Japanese PU formula) |
| OEM/ODM | Logo, packaging, hardness, edge shape, and dimensions customization |
| Your Need | Recommended Hardness | Why it works |
|---|---|---|
| More paste deposit / stronger fill | 65A | More compliant edge helps transfer thicker film |
| Balanced performance for production | 75A | Common choice for stability + deposit control |
| Higher definition / sharper response | 85A | Stiffer edge helps hold geometry for fine detail |
Tip: For aggressive inks/solvents or frequent cleaning cycles, keep hardness stable and prioritize chemical resistance + edge retention.
The FGB squeegee is engineered for flat-bed screen printing environments and works with many leading industrial platforms, including:
• Asys
• Baccini
• Manz
• JRT
• and other major flat-bed systems
•Photovoltaic / Solar: printing silver paste, diffusion barriers, and functional layers where deposit consistency is critical
•Microelectronics: conductor pattern printing requiring stable pressure and repeatable results
•Touch Panel & Glass: fine edge retention and uniform paste application
•Advanced Packaging & Circuit Substrates: consistent thin-film layers and high throughput needs
If your process requires repeatability, chemical resistance, and high-volume stability, a fiberglass board squeegee is often the preferred structure.
HANZE supports OEM/ODM projects for factories, distributors, and equipment partners:
•Logo printing on fiberglass board
•Hardness customization: 65A / 75A / 85A
•Custom widths, thickness, and edge profiles
•Packaging design, labeling, barcode/traceability support
•Bulk production with consistent QC standards
Best for: machine integrators, global distributors, and industrial screen printing lines needing stable supply and specification control.
Every HANZE FGB squeegee batch follows a consistent verification workflow:
•Fiberglass composite and PU formulation verification
•Dimensional checks and hardness testing per batch
•Chemical resistance evaluation against inks/solvents
•Printing edge profile inspection for uniformity and repeatable performance
This helps ensure the fiberglass board squeegee you receive matches your production expectations—especially when you reorder the same specification for long-term lines.
To keep edge performance stable during storage and between shifts:
•Store in a dry, ventilated area away from direct sunlight
•Keep blades flat and tension-free to prevent warping
•Avoid high humidity and heat exposure
•Clean gently before reuse; avoid abrasive scraping that can damage the edge
A fiberglass board squeegee uses a rigid composite backing to improve pressure stability across the stroke, which can help produce more consistent deposit and reduce variation in high-precision printing environments.
Yes. HANZE supports customization for hardness (65A–85A), thickness (5/7/9mm), and edge geometry (square, bevel, single/double edge).
Yes. It is designed for industrial flat-bed screen printing workflows where repeatability and cycle stability are required.
Service life depends heavily on ink/paste type, cleaning chemistry, stroke pressure, and substrate. In stable processes, fiberglass-backed structures are often chosen to improve edge stability and reduce frequent replacements.
Yes. We provide OEM and private labeling options for distributors, equipment manufacturers, and industrial users.
