Screen printing has become the core of many high-volume printing operations today. Its roots trace back to the 18th century when silk mesh, a critical component of the process, was imported from the East. By the 19th century, screen printing had gained significant popularity in the advertising sector, and since then, it has been widely utilized across industries like retail and electronics, mainly due to its flexibility in customization.
While screen printing can certainly be done manually, especially for smaller print runs, the process has largely been automated in modern times. This automation combines advanced inks, materials, and computer technology to mass-produce high-quality prints efficiently. One of the standout benefits of screen printing is its ability to print on almost any surface — from fabric and paper to wood, metal, plastic, and leather. In this guide, we'll delve into how screen printing works, the types of screen printing, its applications, and the benefits it offers.
Screen printing, often referred to as silk screening or silkscreen printing, involves transferring a design onto a surface using a mesh screen, ink, and a rubber squeegee. The process begins by creating a stencil, which is placed on the screen print mesh. Ink is then pushed through the screen to imprint the design on the substrate beneath. Although it is commonly used on paper and fabric, screen printing can also be applied to materials like metal, wood, and plastic. Its popularity stems from its versatility, especially the vast array of colors that can be used to create vibrant, custom designs.
Screen printing can either be done manually or automatically. The fundamental steps remain consistent, with differences arising in the type of ink used, the desired effects, and the surface being printed on. Here's how the process typically unfolds:
The screen printing process begins with creating the design. Once you finalize the design, it's printed onto a transparent acetate film. This film is essential for creating the stencil or screen that will be used in the printing process.

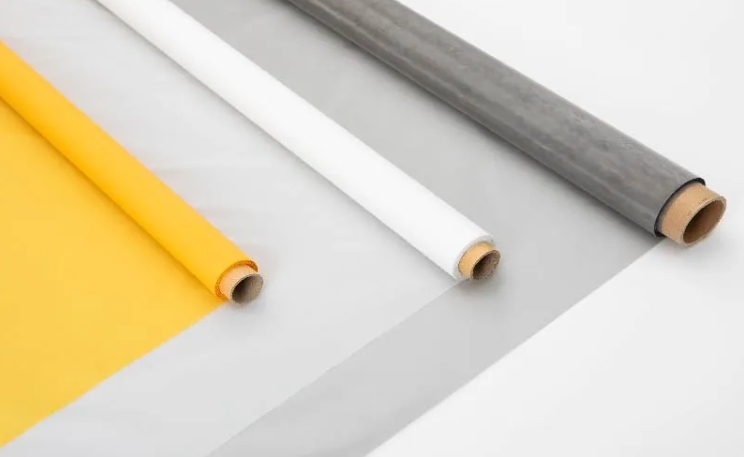

The next step involves selecting the appropriate screen and mesh count. Mesh count refers to the number of threads per inch in the mesh. The choice of mesh count depends on the detail of the design you're printing:
• Higher mesh counts allow for finer details while still applying a substantial layer of ink.
• Lower mesh counts provide wider openings, which allow thicker inks to flow more easily.
Once the mesh printing screen is chosen, it is coated with a light-sensitive emulsion layer. There are three main types of emulsion used in screen printing:
• Diazo: Economical, but requires longer exposure times and is not suitable for detailed designs.
• SBQ-based: Cures quickly without the need for mixing, ideal for detailed work, but more expensive.
• Dual-cure emulsions: A combination of Diazo and SBQ, offering a faster cure time and a more affordable price than SBQ.
Next, the transparent acetate film with the design is carefully placed over the emulsion-coated screen. The screen is then exposed to bright light, which causes the emulsion to harden in the areas not covered by the design. If multiple colors are involved in the design, separate screens must be used for each color.
The exposure process hardens the uncovered areas of the screen, while any remaining unexposed emulsion is washed away, leaving behind a clean stencil of the design. The screen is dried, and any necessary touch-ups are made to ensure the stencil closely matches the original design. At this point, the stencil is ready for use.
The material to be printed on is placed flat on the printing board, and the screen printing screen mesh is positioned on top of it, aligning the stencil in the desired print location.

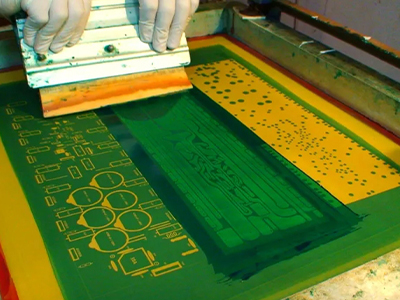

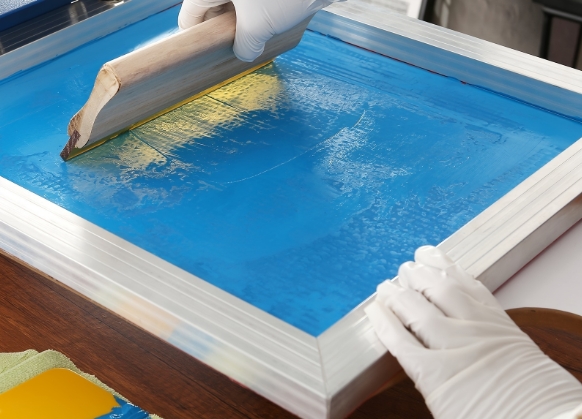

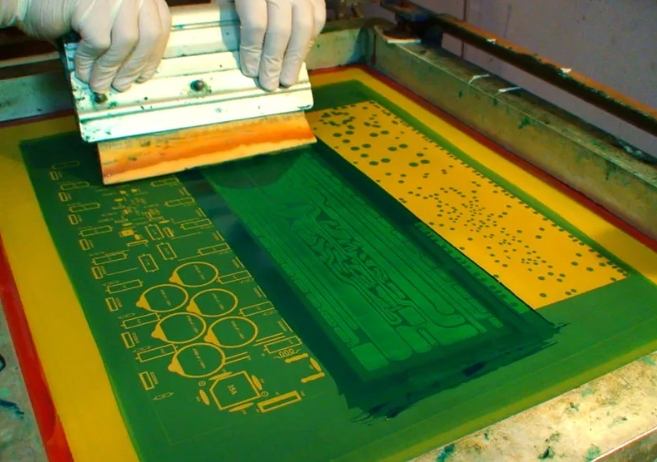

This is when the magic happens. With the silk screen printing mesh in position, the desired ink color is placed at the top of the screen. Using a screen printing squeegee, the ink is evenly spread along the screen's length. The ink flows through the open areas of the stencil and is transferred onto the material below. Once all the items are printed, the stencil is no longer needed. Special cleaning solutions are used to remove the emulsion, making the screen ready for a new design.
Finally, the printed product is heat-cured to ensure the design sets properly. The item is passed through a dryer, which secures the ink, ensuring it doesn't fade or wear off easily.
There are several types of screen printing techniques, each offering different results. Below are the six primary methods:
This is the most common type of screen printing, where a single color of ink is used to create vibrant, solid blocks of color. This method is ideal for simpler designs and is often used for printing on apparel like t-shirts, jackets, and hoodies.

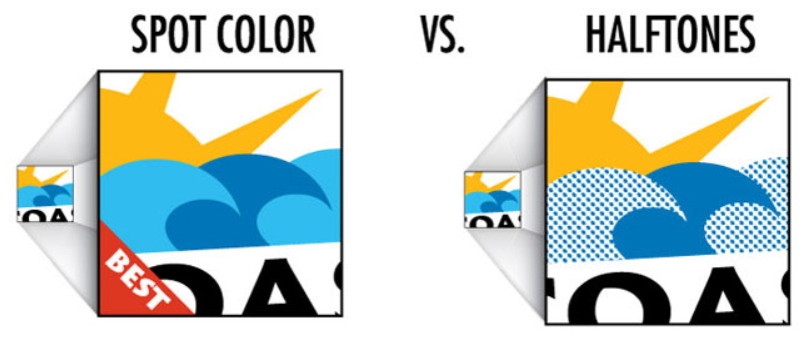

Halftone printing uses a single ink color but creates gradients that appear as different shades when viewed from a distance. This technique is great for achieving the look of multi-color printing without actually using multiple inks, making it a cost-effective option.
Grayscale printing produces a design in various shades of gray, rather than using pure black and white. This method is effective for printing detailed, black-and-white designs or full-color images with a limited palette.
Duotone printing combines two different halftones, typically using black and a second color. This creates an effect similar to sepia-toned photography, offering a stylish, artistic look.
This complex process uses four colors — cyan, magenta, yellow, and black — to create a full spectrum of colors. CMYK printing requires precise registration and is typically automated for the best results.
This technique blends the four-color printing process with spot color printing. It's versatile, capable of producing detailed, photorealistic designs on both light and dark fabrics.
Screen printing offers several distinct advantages, making it a preferred choice for various industries:
One of the standout benefits of screen printing is its versatility. It works on a variety of surfaces, including fabric, plastic, glass, wood, and metal. It can even handle multiple colors, allowing for complex designs.
Screen printed designs are known for their longevity. The thicker ink coverage creates a more durable finish, and with the right coatings, designs can withstand harsh environments, including UV rays, chemicals, and moisture.
The rich and bold colors produced through screen printing are difficult to replicate with other methods. Each color layer is applied separately, preserving the vibrancy of each color in the final design.
While the initial setup costs can be higher, screen printing becomes increasingly cost-effective for large volumes. Once the screen is set up, printing multiple items is quick and inexpensive, making it ideal for bulk production.
Once the setup is complete, screen printing is incredibly fast and efficient. It's perfect for high-volume jobs, especially when the same design needs to be printed repeatedly.
The process of screen printing is relatively straightforward. While automated systems may be more complex, manual screen printing remains simple and easy to execute, with minimal equipment required.
Screen printing is widely used due to its flexibility. Here are some of its most common applications:
• Apparel and clothing designs
• Medical devices
• Decals and stickers
• Balloon printing
• Product labels
• Signage and displays
• Merchandise items
• Textile fabric designs
• Sports equipment and accessories
• How long does a screen printing screen last?
A screen can last for many print runs if properly maintained. Regular cleaning, proper storage, and emulsion removal ensure the screen remains functional for long-term use.
• Can screen printing be used for small runs?
Yes, although it is typically used for larger batches, screen printing can be adapted for small runs. Manual screen printing is ideal for low-volume production, especially when you need quick turnaround times.
• What's the best material for screen printing?
While screen printing works on various materials, fabric, particularly cotton, is the most common. Other materials like metal, plastic, and glass are also used, but fabric tends to give the most consistent results.
• Can I use screen printing for full-color designs?
Absolutely. Methods like CMYK and simulated process printing allow for the creation of vibrant, full-color images using screen printing, making it a great choice for complex designs.
• How do I choose the right screen printing frame for my project?
The choice of frame depends on the complexity of your design and the material you're printing on. For intricate designs, choose a higher mesh count. For larger, bolder prints, a lower mesh count is more suitable.
