Tired of the limits of spot colors? Want to print photo-realistic designs directly onto garments?
Four color process screen printing — also known as CMYK screen printing — is your gateway to full-spectrum, high-resolution, photographic screen printing. While it requires precise setup and a deeper technical understanding, mastering this method will unlock the ability to recreate detailed images, smooth gradients, and rich color transitions on apparel and textiles.
In this guide, we'll take you through everything you need to know about four color process screen printing — from artwork prep and halftone screen printing setup to substrate selection, screen tension, and press operation — so you can consistently achieve jaw-dropping results.
Unlike standard spot color printing where inks are laid down as flat, opaque blocks, four color process printing uses wet-on-wet screen printing to layer translucent inks — cyan, magenta, yellow, and black (CMYK) — and simulate millions of tones and gradients. By manipulating halftone dots and overlapping transparent inks, CMYK printing can replicate:
• Full-color photographs
• Complex illustrations
• Subtle color transitions and shading
• Highly detailed imagery with depth and realism
Whether you're printing scenic landscapes, human portraits, or product mockups, screen printing with process colors delivers unmatched visual impact.
Great prints start with great files. When it comes to CMYK, artwork quality is critical — every nuance of tone, shade, and pixel matters.
• Resolution matters: Start with high-resolution artwork (300 DPI or more). Oversized designs are often preferred to maintain detail after halftone conversion.
• Color mode: Convert the file to CMYK mode, not RGB. RGB is for screens; CMYK is for ink-based reproduction.
• Color separation: Use professional RIP software (like AccuRIP or Separation Studio) to generate halftone separations. Adjust settings tailored for screen printing:
Yellow: 5°
Magenta: 22°
Cyan: 55°
Black: 80°
Dot shape: Elliptical dots work best for mesh grid structures.
Screen angles (to avoid moiré):
Line count: Commonly 55 LPI (26.6 lines per cm), balancing detail and printability.
Dot density: Keep halftone dots between 15% to 85%. Anything below or above may be lost or become muddy due to dot gain.
Pro tip: Some ink manufacturers offer plug-ins or ICC profiles that match your software's color output to their ink formulations for better accuracy.
CMYK printing isn't just about files and mesh — your garment matters just as much.
• Best substrates: Light-colored garments, particularly white or natural cotton, deliver the best results for CMYK printing. They allow the translucent inks to build clean, vibrant tones.
• Printing on dark garments: Yes, it's absolutely doable — but with a catch. You'll need to lay down a white underbase to prevent color absorption into the fabric. This underbase must be flash-cured to provide a stable printing surface.
“While CMYK printing on dark shirts isn't as common due to added complexity, it is standard practice in the industry — especially in apparel printing. It just requires more precise registration, a fifth screen for white, and careful underbase control.”
• Fabric weave: Choose fabrics with tight weaves (e.g., ringspun cotton, polyester blends). Avoid coarse canvas or heavy fleece — the thick threads distort halftone dots.
• Color consistency: Even within white shirts, tone shifts (cool vs warm whites) between batches can subtly affect final print tones.
In four color process screen printing, precision is everything — especially in your screens and press settings.
• Mesh count: Use high-count mesh — 305 mesh (120T) or higher — to capture the fine halftone dots.
• Thread thickness: Opt for 34-micron threads or thinner to preserve detail.
• Emulsion/coating: Use high-resolution emulsions or capillary films. Apply sharp edge coatings for precise dot reproduction.
• Keep screen tension at 25 Newtons/cm² (±2N). Uneven or low tension causes off-contact drag, registration issues, and blurred prints.
• Use 70–75 durometer squeegees to deliver thin, controlled ink deposits.
• Angle: 15° flood bar and print stroke angles are ideal for halftone control.
• Off-contact distance: Keep it tight — around 0.040 inches (1 mm) — to preserve halftone clarity.
Four color process printing uses wet-on-wet technique, which means inks are printed in sequence without drying between colors (except white underbase, if used).
• White underbase (if needed) → Flash cure
• Yellow → Magenta → Cyan → Black
This order helps prevent darker inks from overpowering lighter ones and facilitates smoother tone blending.
You only flash the white underbase to create a dry, opaque foundation. Flashing CMYK inks between passes would prevent them from blending, defeating the purpose of wet-on-wet screen printing.
Yes — but it's very difficult.

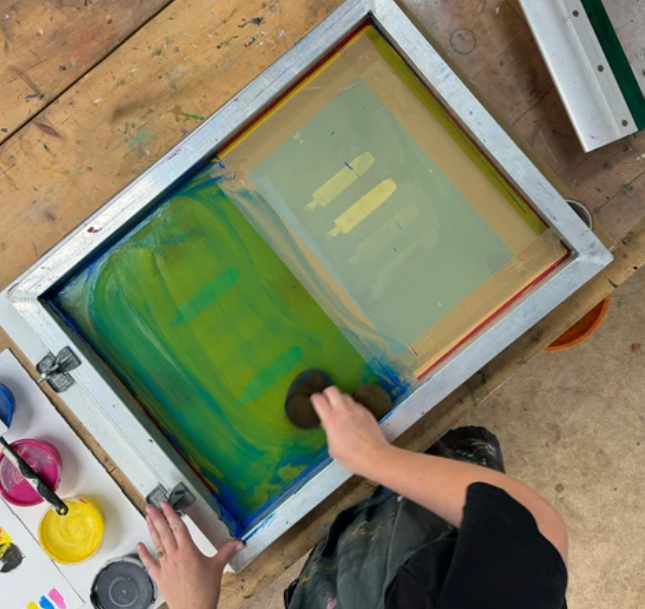

While manual CMYK screen printing is possible, it demands expert-level consistency and equipment calibration:
• Every squeegee stroke must maintain the same angle, speed, and pressure.
• Registration must be flawless across all four screens.
• Only one stroke per color — no double-passes allowed.
• Minimal pressure and light ink deposit are key.

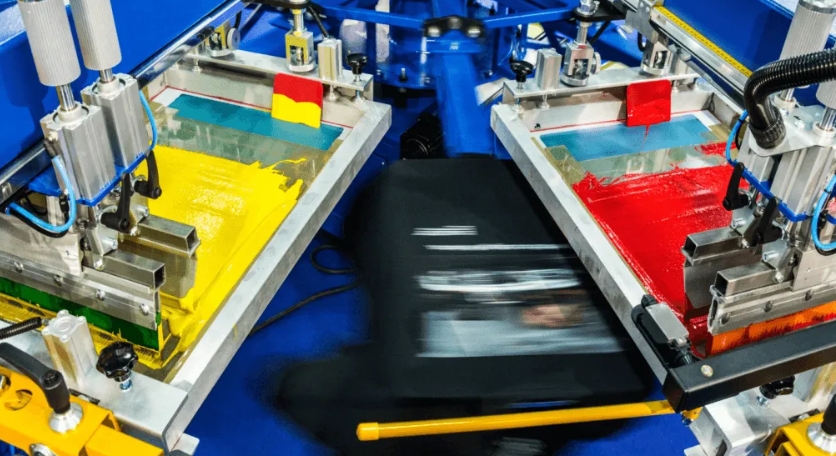

⚠️ Reality check: Unless you're working on small runs with expert printers, it's strongly recommended to use an automatic press for consistent ink deposit, perfect registration, and production efficiency.
| Issue | Cause | Solution |
|---|---|---|
| Colors appear muddy | Ink layers too thick, high viscosity, poor sequence | Use thinner ink layer, lower angle, adjust ink viscosity |
| Moiré patterns | Incorrect screen angles or LPI/mesh mismatch | Recalculate angles, adjust mesh and halftone combo |
| Dot loss in highlights | Halftone below 10% or screen too coarse | Avoid extreme dot %; use higher mesh, better tension |
| Poor registration | Uneven screen tension, press misalignment | Check and match screen tension, calibrate press |
| Prints fade after wash | Under-cured inks or thick wet-on-wet buildup | Ensure proper final cure (320–340°F for ~1 minute) |
Here's a step-by-step summary to streamline your process:
1. Prepare high-res artwork in CMYK mode
2. Separate using halftone dots (55 LPI, elliptical)
3. Create four screens (plus white underbase if needed)
4. Coat with high-res emulsion or capillary film
5. Maintain 25N tension across all screens
6. Align all screens with perfect registration
7. Set off-contact to 0.040 inches
8. Use 70–75 durometer squeegees
9. Print white base → Flash → Yellow → Magenta → Cyan → Black
10. Fully cure printed garment (ensure dry-through)
If you're looking to grow beyond basic logos and spot colors, CMYK screen printing opens the door to high-value, photographic garment decoration. Yes, there's a learning curve — but the results can set you apart in a crowded market.
From full-color band tees and souvenir apparel to commercial photo prints on fabric, four color process adds visual impact, emotional appeal, and premium pricing potential.
Four color process screen printing combines artistry with engineering — and when executed correctly, it delivers breathtaking full-color prints your clients will rave about.
Whether you're scaling your shop or experimenting with advanced techniques, mastering CMYK printing is a powerful step forward. Begin with simple images, refine your workflow, and watch your color capabilities grow.
Ready to Elevate Your Print Shop with Stunning CMYK Capabilities?
Contact Us Today for expert advice on inks, equipment, and halftone setup.
• Can I do four color process screen printing on black shirts?
Yes, but you'll need a white underbase to preserve color accuracy. It's a standard industry practice, though it adds complexity.
• Do I need special inks for CMYK printing?
Yes, process inks are thinner and more transparent than spot colors. Always use inks specifically formulated for CMYK screen printing.
• How do I avoid moiré patterns?
Use proper screen angles (5°, 22°, 55°, 80°) and avoid LPI/mesh count mismatches.
• Why are my prints dull after washing?
Most likely undercured ink. Ensure proper final curing at 320–340°F for at least 60 seconds.
• Can I use halftone RIP software with Illustrator or Photoshop?
Yes — many plug-ins exist for both. Separation Studio and AccuRIP are popular options.
