Direct-to-Film (DTF) has become the most flexible way to decorate cotton, polyester, blends, nylon and more—without pretreatment. For factories and print shops, the right printer + film + white ink management + adhesive powder + heat press stack determines color fidelity, durability, and throughput. This guide explains the essentials, shows how to choose a printer by volume and format, and offers baseline settings, maintenance routines, and a buyer's checklist tailored to bulk production.
DTF prints your artwork onto PET transfer film using CMYK+W pigment inks. After printing, you apply hot-melt adhesive powder, cure the coated film, then heat-press it to the garment. The result is a soft, vivid, wash-resistant transfer suitable for short runs, unlimited colors, variable data, and mixed fabric orders—often with less handling than DTG.
Use this overview to see how each component fits into a production-ready DTF line. The table maps every device to its role, and flags what is mission-critical versus optional. If you scale beyond sampling, prioritize automation (powder shaker + inline dryer) and consistent white-ink management to stabilize throughput and color.
| Component | Role in Workflow | Must-Have? | Notes for B2B |
|---|---|---|---|
| DTF Printer (with white ink circulation) | Prints CMYK+W onto PET film | Yes | Look for stable white ink recirculation, degassing, and capping to prevent clogs. |
| RIP Software | Color management, underbase control, ink limiting | Yes | Essential for gamut, gradients, trapping, choke, and ink cost control. |
| PET DTF Film | Receives ink; transfers graphic | Yes | Hot peel for speed; cold peel for ultra-crisp edges and detail. |
| DTF Adhesive Powder | Bonds ink layer to fabric | Yes | Fine = smoother hand; Coarser = slightly more texture / grip. |
| Curing Unit / Oven (or film dryer) | Melts powder uniformly | Yes | Even cure = consistent hand and wash fastness. |
| Powder Shaker (auto) | Applies and recovers powder | Optional → Scales | Cuts labor, standardizes coat weight for higher volumes. |
| Heat Press | Transfers to garment | Yes | Flat, even heat/pressure; platen size ≥ print size. |
| Ventilation / Air Filtration | Fume extraction during cure | Recommended | Improves operator safety and shop comfort. |
| Cleaning & Maintenance Kit | Keeps heads and lines clear | Yes | Daily wipe, capping seal checks, periodic flushing. |
Key takeaway: consistency beats peak specs. Even curing, clean capping, and a reliable RIP will do more for wash fastness and margins than chasing maximum temperature or DPI numbers alone.
Match printer width and features to your daily sheet count and staffing. This matrix helps you pick a format that your team can run continuously without bottlenecks at powdering, curing, or pressing.
| Use Case | Print Width | Typical Daily Volume | What to Prioritize | Why |
|---|---|---|---|---|
| Starter / Sample Lab | A4–A3 | 10–50 sheets | Reliability, easy maintenance | Low-cost entry, proofs, micro-batches. |
| Growing Shop | 30–60 cm | 50–200 sheets | White ink recirculation, auto take-up, RIP | Handles mixed SKUs with fewer stoppages. |
| Production Line | 60–120 cm | 200–1000+ sheets | Dual heads, shaker+dryer inline, media path stability | Throughput, consistent coat weight and cure. |
Selection tip: when in doubt, step one size up in print width and add an inline shaker/dryer before adding a second printer. It reduces handling, improves coat uniformity, and lifts effective yield per operator.
•Pigment-based for wash resistance and stretch.
•White ink must circulate to prevent settling; schedule gentle agitation/stir and daily nozzle checks.
•Keep sealed; control temperature/humidity to minimize viscosity swings and clog risk.
Choose film by the balance you need between cycle time and micro-detail. Hot-peel films favor speed for bulk orders, while cold-peel films reward you with razor-sharp edges for fine text and thin lines.
| Film Type | Peel Stage | Best For | Advantages | Watch-outs |
|---|---|---|---|---|
| Hot Peel | Peel immediately after press | Speed-focused shops | Faster cycle, great for volume | Slightly less edge crispness on ultra-fine details. |
| Cold Peel | Peel after cool-down | Fine detail & small text | Ultra-crisp edges, high opacity | Adds seconds to cycle time; plan press flow. |
Implementation tip: stock both types and standardize two press recipes. Route jobs with tiny text or micro-gradients to cold-peel; route solid graphics and high volume to hot-peel.
•Fine grade → smoother hand feel; ideal for fashion tees.
•Medium/Coarse → a bit more texture and grip; useful for heavier textiles.
•Coat evenly; too little reduces wash fastness, too much stiffens the hand.

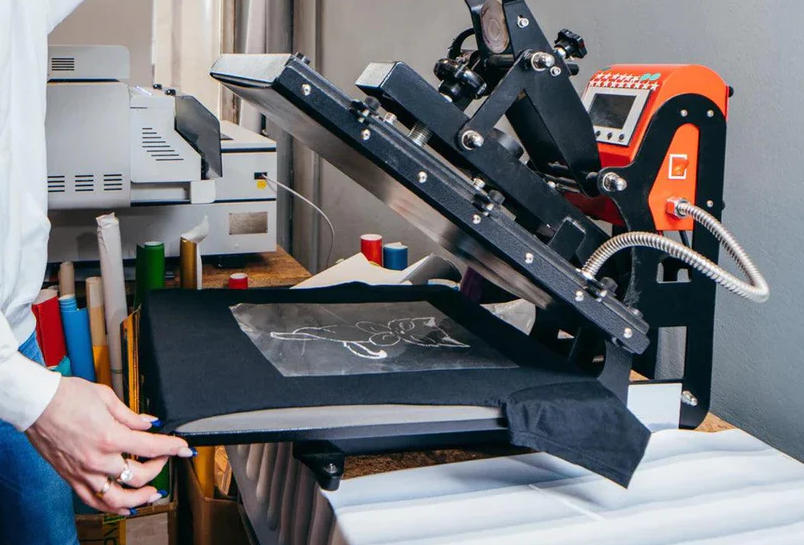

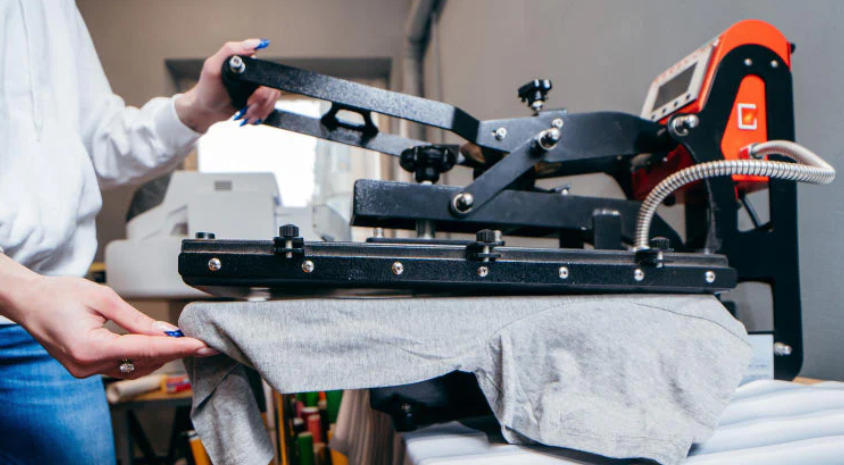

•Even platen temperature and stable pressure are non-negotiable.
•Match platen size to the largest transfer you sell to avoid double-pressing.
•Keep pads clean; residue causes texture artifacts.
•White underbase density and choke, ICC color profiles, spot color mapping.
•Queue & nesting to maximize film utilization and reduce waste.
•Ink cost estimator for quoting and margin control.
•Even airflow and temperature prevent yellowing and ensure consistent bond.
•Inline shaker+dryer standardizes powder application and frees operators.
Always validate with your specific film, ink, fabric, and press. Run wash tests before scaling.
1. Design & RIP: RGB or CMYK artwork → RIP with white underbase (choke 0.1–0.3 mm as needed).
2. Print: 1440×1440 dpi or higher for fine gradients and small text.
3. Powder: Apply evenly; shake off excess.
4. Cure: Typically 110–130 °C for 2–5 min until powder is fully melted (no grain).
5. Press:

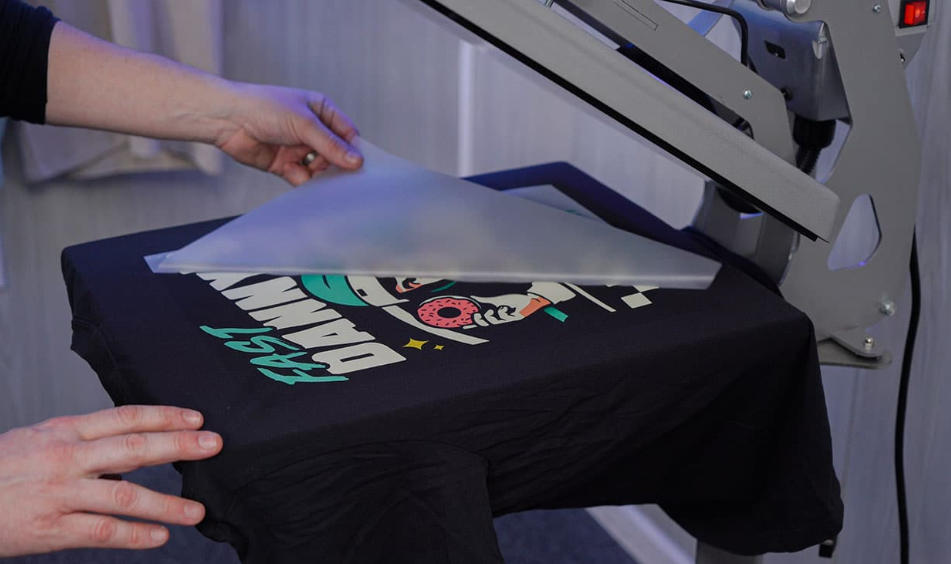

•Hot-peel film: 145–160 °C, 8–12 s, medium pressure; peel immediately.
•Cold-peel film: 150–165 °C, 10–15 s, medium pressure; cool, peel, then optional post-press 5–8 s for surface finish.
6. Quality Check: Stretch, scratch, and wash test (inside-out, cool water) to confirm settings.
This comparison frames where DTF outperforms other methods on fabric range, pretreatment steps, and small-lot flexibility. Use it when advising customers or setting factory SOPs for mixed materials.
| Criteria | DTF | DTG | Sublimation |
|---|---|---|---|
| Fabrics | Cotton, poly, blends, nylon | Mostly cotton | Mainly polyester/light colors |
| Pretreatment | No | Yes (dark shirts) | No |
| Hand Feel | Soft–medium (tunable by powder & press) | Very soft | Very soft |
| Color & Opacity | Excellent on light/dark (white underbase) | Excellent on cotton | Vivid but limited to light polyester |
| Small Runs / Mixed SKUs | Strong | Strong | Good (if fabric fits) |
| Capex & Workflow | Moderate; scalable | Moderate–high | Low–moderate (if polyester focus) |
Preventive maintenance is the cheapest throughput boost you can buy. The checklist below aligns daily and weekly routines with printhead health, color stability, and transfer consistency.
| Frequency | Task | Why It Matters |
|---|---|---|
| Daily | Nozzle check, head wipe, cap & wiper clean | Prevents banding, clogs, downtime |
| Daily | White ink circulation / gentle stir | Avoids settling and pigment separation |
| Weekly | Line flush (as recommended), waste tank check | Stable flow and negative pressure |
| Weekly | RIP profile verification on key fabrics | Color consistency across orders |
| Monthly | Platen flatness & press pressure test | Even transfer and hand feel |
| Per Batch | 1–2 garment wash tests | Catch issues before full run |
•Printer: Stable media feed, auto take-up, reliable capping, proven head tech, active white recirculation.
•RIP: Solid white underbase tools, nesting, spot color, profiles for your films/inks.
•Film: Choose hot vs cold peel by your cycle time and detail requirements.
•Powder: Grade matched to hand feel; test coat weight vs wash performance.
•Cure & Press: Evenness > max temperature; consistency is king.
•Support: Local parts, training, and SLA—crucial for uptime.
Before you scale production, review this DTF printer and supplies checklist to make sure your film, ink, powder, curing and press settings are aligned with output goals.
• Can I convert a regular inkjet to DTF?
Yes, but it requires DTF inks, white-ink circulation, compatible dampers/lines, and RIP. For business use, a purpose-built or professionally converted unit is more reliable.
• Do I need pretreatment?
No. DTF uses white underbase + adhesive powder to bond across fabrics.
• What fabrics work best?
Cotton, polyester, blends, nylon, some leathers. Always test specialty finishes (DWR, silicone, heavy rib).
• Hot peel or cold peel?
Hot peel for throughput; cold peel for super-fine detail. Stock both if your jobs vary.
• What about wash durability?
With proper cure and press, DTF holds up well. Validate with inside-out wash tests and your client's care label standards.
• How do I reduce a "rubbery" hand feel?
Use finer powder, confirm proper cure (no over-melt), and reduce press dwell/pressure within spec. Post-press briefly to level the surface.
• Why are my colors dull?
Check RIP profile, ink limits, humidity, and ensure film is the correct side. Verify underbase density and overprint order.
Ready to build a reliable DTF line for mixed-fabric orders? Tell us your daily volume, max print size, and target hand feel. We'll recommend a printer + film + powder + curing + press bundle with onboarding and production checklists to get you printing fast. Contact Us to request specs, samples, and lead times.
