Curing mistakes don't always show up right away—sometimes they appear after handling, stretching, or the first wash. That's why this guide focuses on the practical side of using a flash dryer: when to flash, when to fully cure, how to set height and dwell time, what to watch for with plastisol and water-based inks, and how to avoid common issues like under-curing, dye migration, and scorching. The tables and checklists make it easy to dial things in, even if you're working with a compact setup.

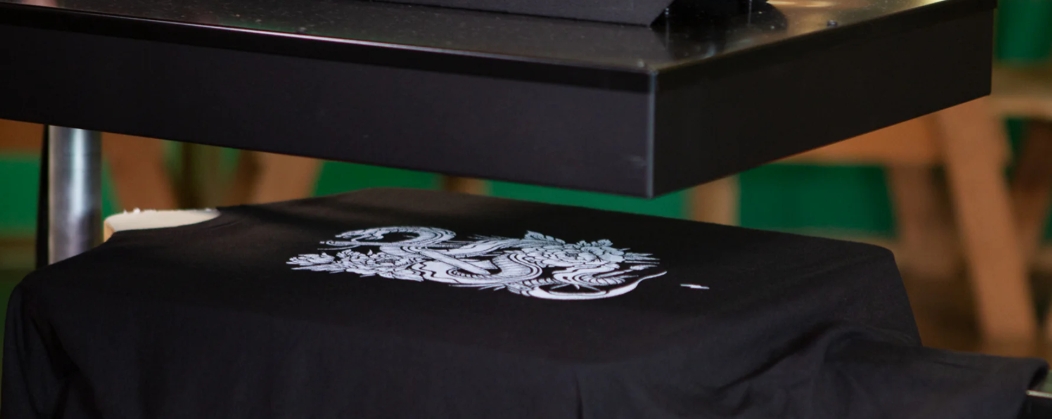

A flash dryer (also called a flash cure unit) is a compact heating device that applies controlled, concentrated heat to a printed area. Screen printers use it for two jobs: (1) flashing between colors so the next layer doesn't smear, and (2) assisting or finishing final cure when the workflow allows. Most units use infrared-style heat (including quartz/IR elements), mounted in a head above a platen area. Heat is delivered quickly, so the ink surface reaches a targeted temperature in seconds rather than waiting for air drying. In production, that time savings is only half the story. A properly set flash dryer improves consistency: inks gel when you want them to, highlights stay sharp, and the print can be handled without offsetting onto screens or garments. A flash dryer isn't the same as a conveyor dryer, and it isn't automatically a "final cure guarantee" for every ink system. Still, for multi-color work, white underbases, and high-opacity layers, a flash cure step is often the difference between a smooth run and constant rework.
Quick summary
• High-intensity heat for fast ink control
• Used for flashing between colors and sometimes final cure
• Works with plastisol, water-based, and many specialty inks (with correct settings)
For most serious screen printers, the honest answer is "yes"—especially if you print more than one color, print whites, or care about throughput. Without a flash cure step, you're forced into slow air drying, risky handling, or workarounds that create quality problems later. Multi-color jobs become a bottleneck because the next screen can pick up wet ink, causing smears, muddy blends, or loss of detail. Even single-color work can suffer when you print heavier ink deposits: a print may feel dry on top but still fail a wash test because the ink never reached its cure requirement through the full film thickness. A flash dryer also helps reduce shop stress. Operators stop hovering, guessing, and over-handling garments, and production becomes more predictable across different humidity and temperature conditions.
That said, a flash dryer is not the only path. If your operation is strictly hobby-level and you're comfortable with slower cycles (and occasional failures), you can print without one. Once orders, labor cost, and consistency matter, a flash dryer quickly pays for itself in reduced downtime and fewer ruined garments.
Where a flash dryer matters most
• Multi-color printing (especially tight registration work)
• White underbases and high-opacity layers
• Short runs where setup speed affects profit
• Shops that want consistent results across seasons and climates
A flash dryer works by converting electrical energy into intense heat and directing that heat onto the printed ink film. The main mechanism is radiant heating—heat energy travels from the heating element to the ink surface. As the surface warms, the ink begins to change state: plastisol "gels" before it fully cures, while water-based ink first loses moisture and then cures/bonds depending on the chemistry. Because radiant heat is fast, the surface temperature can climb quickly even if the ink underneath is still cooler. That's why screen printers talk about time + distance + ink deposit as one system. Move the head closer or increase dwell time and the surface can overshoot, leading to scorching or over-flashing. Move it too far away and you may only "skin" the top—creating a deceptive dry feel while the ink below remains unstable.
Most flash units reach working output within minutes, but stable results come from consistent preheat and repeatable positioning. Temperature tools help because the goal isn't "maximum heat," it's "correct heat at the ink film for the correct duration." For plastisol, flashing aims for a gel state that resists pickup, while final cure aims for full polymerization. For water-based inks, airflow and moisture removal become a bigger part of the equation, so settings and expectations change.
Flashing is a controlled partial set so you can print the next color without disturbing the layer beneath. For plastisol, flashing typically means heating until the ink gels—firm enough that it won't transfer to your finger or the next screen, but not so "over-baked" that it becomes a bonding problem. Over-flashing is a quiet killer in multi-color printing: the next layer may sit on top instead of bonding, or the finished print can feel thick and less flexible. Flashing also affects hand feel because every extra second of heat can increase the perceived firmness of the final print, especially on heavy deposits like underbases.
Final curing is about durability. A final cure must satisfy the ink system's requirement through the full ink film, not just the surface. In production shops, a conveyor dryer is the classic tool for final cure because it delivers more uniform heat and dwell time across the whole garment. A flash dryer can achieve final cure in some scenarios, but it's more sensitive to operator consistency, print size, and ink thickness. If you rely on a flash unit as your last step, you need stronger process control—temperature checks, consistent distance, and a real cure verification routine (not just "feels dry").

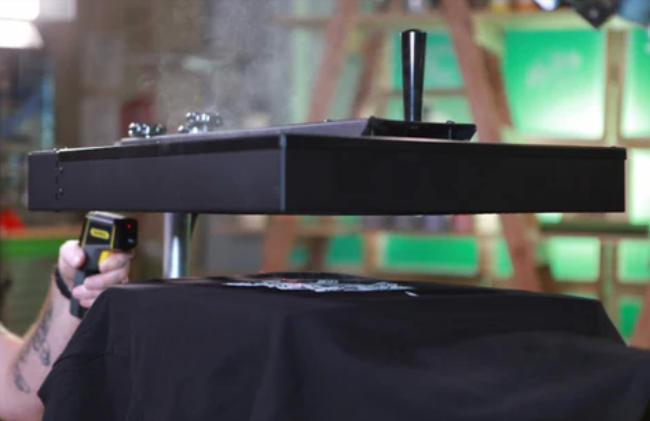

A reliable routine beats "guess and hope." Start by keeping the garment flat on the platen and ensuring the printed area sits directly under the heating head. Preheat the flash dryer so the element output stabilizes—rushing this step causes inconsistent first prints. Next, set your head height so heat is strong enough to work quickly but not so close that you scorch fabric or blister ink. Most shops begin with a moderate distance and adjust based on results. During flashing, move the head into position and time the dwell consistently. The goal is a surface that's set enough to resist pickup, not a fully cured layer. After flashing, allow a brief cool-down so the next screen doesn't stick or distort the gelled ink.
For final curing under a flash dryer, consistency becomes even more critical. Keep distance and dwell time consistent across garments, and verify cure with a repeatable test method. A quick stretch test helps, but it's not perfect for every ink; combine it with temperature checks and wash testing when you change inks, garments, or season.
Best-practice tools
• Laser thermometer for quick surface readings
• Temperature strips or probe methods for process validation
• A timer (manual counting is how defects sneak in)
Settings depend on ink type, deposit thickness, garment color, and even platen material. Use the table below as a starting point, then dial in by testing. Treat numbers as "shop baselines," not universal laws—different brands and formulas behave differently.
| Application | Ink system | Goal | Typical surface target | Typical dwell time | Notes |
|---|---|---|---|---|---|
| Flash between colors | Plastisol | Gel, no pickup | ~115–125°C / 240–255°F | ~3–12s | Avoid over-flash; thick underbases need longer |
| Flash between colors | Water-based | Set surface, reduce smear | Varies by ink | ~5–20s | Often needs airflow help; watch for drying-in-screen |
| Final cure assist | Plastisol | Full cure through film | Often ~160–165°C / 320–330°F (per ink spec) | ~25–60s | Verify with wash tests; large prints need consistency |
| Specialty inks | Puff / high-density | Controlled rise & cure | Per ink spec | Varies | Too hot too fast can over-expand or crust the surface |
Distance guidance (practical)
• Closer = faster heating, higher scorch risk
• Farther = safer fabric, but may only "skin" the ink
• Keep height locked once dialed in (repeatability beats perfection)
Plastisol is forgiving in one way and unforgiving in another. It doesn't "dry," it cures by heat—so humidity matters less, and flashing between colors is straightforward once settings are stable. The risk shows up when the surface gels too aggressively. Over-flashing a plastisol underbase can reduce intercoat bonding and leave a print that feels heavier than it should. Thick white layers are the classic example: they need enough heat to set, but too much heat makes the stack stiff and can cause bonding issues on the next pass.
Water-based inks behave differently. They rely on moisture removal and cure chemistry, so flashing without airflow can create a skin on top while trapping moisture below. That can lead to wash problems later or a print that feels "off" even if it looked fine on press. Water-based systems also raise the risk of ink drying in the screen during long runs if flashing slows your rhythm. Good workflow—screen management, humidity awareness, and sometimes forced airflow—matters more here than with plastisol.
Polyester warning (important for both)
Poly fabrics can trigger dye migration when overheated or when dwell time is too long. A flash dryer can accidentally spike surface temps, especially on dark poly, so control is everything: shorter flashes, correct ink systems, and verification before a big run.
Most flash dryer problems come down to three variables: too hot, not hot enough, or inconsistent technique. Use this table to diagnose quickly and correct without guessing.
| Problem | Likely cause | Quick fix |
|---|---|---|
| Ink feels dry but cracks after wash | Under-cured through ink film | Increase dwell slightly, verify temp, reduce ink deposit |
| Next color won't bond / layers separate | Over-flashing previous layer | Reduce flash time, increase distance, avoid baking underbase |
| Fabric scorching or platen marks | Head too close / dwell too long | Raise head, shorten dwell, use consistent timing |
| Ink sticks to the next screen | Flash not reaching gel state | Add seconds, ensure preheat, confirm head alignment |
| Water-based feels tacky later | Moisture trapped / insufficient cure | Add airflow, adjust flash routine, follow ink cure spec |
| Edges look rough or "fuzzy" | Overheating or garment movement | Stabilize garment, reduce heat intensity, keep platen steady |
| Color shift on poly | Dye migration from excess heat | Use poly-safe ink system, reduce peak temp, shorten dwell |
A flash dryer is built for speed and control at the press. A conveyor dryer is built for repeatable final cure at scale. Heat presses and heat guns can work in limited contexts, but they introduce constraints that show up quickly in production.
| Tool | Best for | Strengths | Limits |
|---|---|---|---|
| Flash dryer | Between-color flashing, short runs | Fast, simple, press-friendly | Operator consistency matters; final cure needs verification |
| Conveyor dryer | Final cure in production | Uniform heat + controlled dwell | Higher cost, more space |
| Heat press | Small flat items, transfers | Precise temp/pressure | Not ideal for thick ink films or large garment prints |
| Heat gun | Emergency fixes, tiny areas | Cheap, portable | Uneven heat, easy to scorch, hard to repeat |
Decision shortcut
• Multi-color garments: flash dryer is the workflow stabilizer
• High-volume daily output: conveyor dryer becomes the profit protector
Shoppers often focus only on wattage, but buying the right unit is really about matching your print area and your workflow. Head size must cover your typical design area without forcing constant repositioning. Height adjustment should be smooth and stable so settings stay locked during a run. A sturdy stand matters more than most people expect—wobble equals inconsistent cure. Element type (IR/quartz styles) affects heat response and uniformity, but the bigger win comes from controllability and repeatability. Also consider your shop's electrical reality: a powerful unit is useless if it trips circuits or forces unsafe extension setups.
Buying checklist
• Head size that covers your common print size
• Stable height control + easy positioning
• Consistent heat output (not "hot spots"
• Safe electrical requirements for your shop
• Replaceable parts and accessible maintenance
Good shops treat flashing as a timed station, not an improvisation. Keep a consistent rhythm: print, flash, print. If you run a manual carousel, position the flash unit so the operator's movement stays simple and repeatable. Use a timer or foot-switch habit—anything that reduces "counting in your head." Keep screens clean and manage off-contact so the next color doesn't drag across a still-soft layer. When printing large underbases, consider two lighter passes rather than one heavy deposit if cure consistency becomes a problem. That approach often improves hand feel and reduces the temptation to over-flash.
Seasonal changes matter more than people admit. Winter shops often overheat to compensate for slower warm-up; humid shops fight water-based tack. Build a small verification routine into your day: one early test print, one mid-run check when the shop warms up, and one check when you change garment types. Those small habits prevent "mystery failures" that only show up after delivery.
• Can a flash dryer replace a conveyor dryer?
A flash dryer can work for final cure in some low-to-medium volume workflows, but a conveyor dryer is more consistent for full production because dwell time and heat distribution are easier to control.
• Quartz flash dryer vs infrared flash dryer—what's the difference?
Many "IR" units use quartz-style elements. The practical difference comes down to heat response speed, coverage uniformity, and how consistently the unit holds output during long runs.
• Why does plastisol feel cured but fails washing later?
Surface set can be misleading. If heat never reaches through the full ink film, the print can crack or fade after washing even though it felt dry on press.
• What's the safest way to avoid scorching garments?
Lock a repeatable head height, use a timer, and avoid running the head too close just to "go faster." Faster is only better when results remain consistent.
• Do I need special settings for polyester garments?
Yes. Polyester can be sensitive to heat and may dye-migrate. Use controlled peak temperatures, shorter flashes, and ink systems designed for poly when needed.
If you're building a faster, cleaner screen printing workflow, a well-matched flash dryer is one of the most practical upgrades you can make. Pair it with stable screens, consistent squeegees, and a repeatable curing routine—and your shop gets fewer misprints, smoother production, and more reliable wash durability. If you need a flash dryer sized to your print area (or a full set of press-side essentials), request a quote and share your typical ink system, garment types, and print dimensions.
