In the world of screen printing, many variables interact to determine the quality of a finished print, including mesh count, ink type, stencil thickness, squeegee hardness, and printing speed; however, one of the most frequently overlooked yet decisive factors is squeegee pressure. This seemingly simple adjustment directly governs how efficiently ink passes through the mesh, how sharply details are reproduced, how the printed surface feels to the touch, and even how long your screens and squeegees will last.
Printers who underestimate the importance of pressure often find themselves facing recurring problems such as ink bleeding, inconsistent coverage, clogged screens, and rapid tool wear, which not only reduce print quality but also slow production and increase costs. By understanding the underlying mechanics of squeegee pressure and learning how to set it precisely for different inks, substrates, and environmental conditions, you can transform your printing process from a trial-and-error struggle into a controlled, repeatable, and highly efficient operation that produces consistently professional results.

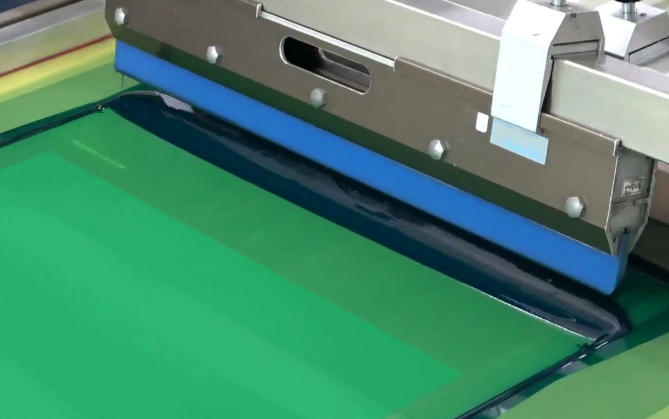

Squeegee pressure is more than just the force you apply to the blade; it is a carefully balanced interaction between the squeegee, the mesh, the ink, and the substrate, all of which respond to pressure changes in subtle but significant ways. When the squeegee moves across the screen, it flexes under the applied force, pushing ink into the mesh openings and shearing it across the stencil surface so it transfers cleanly to the substrate. Too little force results in incomplete ink transfer, leaving faint or patchy areas, while excessive force drives ink under the stencil edges, causing blurred lines, dot gain in halftones, and unwanted thick deposits that stiffen the print. In addition, excessive pressure compresses the mesh too much, slowing its snapback recovery and potentially stretching or distorting it over time, which reduces stencil accuracy. The goal is to apply enough pressure to achieve full, even coverage while maintaining control over ink flow and protecting both the screen and the blade. Understanding this balance—and recognizing how angle, speed, hardness, and environmental factors interact with pressure—forms the foundation for consistent, high-quality screen printing.
| Application Type | Recommended Pressure (N) | Recommended Pressure (kgf) | Notes |
|---|---|---|---|
| Plastisol ink on cotton | 20–35 N | 2.0–3.5 kgf | Standard textile printing |
| Water-based ink on light fabric | 15–25 N | 1.5–2.5 kgf | Lower viscosity, avoid flooding details |
| UV ink on rigid substrates | 40–50 N | 4.0–5.0 kgf | High viscosity, high mesh count |
One of the most visible effects of correct squeegee pressure is a uniform ink deposit across the entire print area. If pressure is uneven from one side of the blade to the other, you might notice one edge of the print appearing darker or more opaque than the other, which is especially problematic on large solid areas or gradient fills. Inconsistent coverage is often the result of an uneven press setup, improper blade maintenance, or operators leaning harder on one side during manual printing.
Fine lines, small text, and halftone dots require precise control over ink flow. Too much pressure forces ink beyond the stencil boundaries, softening edges and increasing dot size (dot gain), while too little pressure leaves fine details incomplete or broken. In photographic screen printing, where tonal transitions and sharp definition are essential, mastering pressure can mean the difference between a crisp, high-resolution image and one that looks muddy or out of focus.
While opacity and durability are important, the tactile feel of the printed surface matters greatly in textile applications. Over-pressuring not only wastes ink but also creates thick, raised prints that feel heavy and stiff, reducing garment comfort and drape. Balanced pressure produces a smoother, softer print that integrates better with the fabric's natural texture.
Screens, mesh, and squeegee blades all have finite lifespans, but they can be significantly extended by avoiding excessive pressure. Over time, unnecessary force accelerates mesh loosening, screen frame warping, and blade edge rounding or nicking, which in turn require earlier replacement and increase operational costs.
Inconsistent or incorrect pressure settings can cause defects that force reprints, leading to wasted ink, fabric, and time. They can also cause mid-run issues such as mesh clogging or uneven drying, requiring additional cleaning or adjustment and interrupting workflow. Correct pressure settings reduce these disruptions, keeping production smooth and predictable.
Always begin with a reference point—either the machine manufacturer's recommended starting pressure or the midpoint of your press's adjustable range. For manual printing, this might mean applying light, even force with both hands and increasing gradually, whereas in automatic presses it involves setting a digital or mechanical control to a mid-range value. Record this setting along with mesh count, ink type, and substrate details so you can trace back if adjustments are needed later.
| Press Type | Starting Pressure Setting | Blade Deflection Reference |
|---|---|---|
| Automatic press | 50–60% of max machine setting | — |
| Manual press | — | Blade deflection of 3–5 mm during stroke |
Before running full production, print on a test substrate that closely matches your actual job material. Evaluate the print for even coverage, edge sharpness, fine detail reproduction, and ink penetration. Look for signs such as streaking, patchiness, or uneven opacity, which indicate insufficient pressure, or bleeding, dot gain, and overly thick ink layers, which suggest excessive pressure.
Changes should be small and deliberate—typically no more than a 5% adjustment at a time—followed by another test print. This incremental approach allows you to isolate the effect of pressure without simultaneously altering other variables, leading to more accurate calibration.
| Baseline Pressure | 5% Adjustment (N) | Example Adjustment Method |
|---|---|---|
| 25 N | ±1.25 N | Quarter turn of pressure knob or 1–2 mm stroke height change |
| 30 N | ±1.5 N | Quarter turn of pressure knob or 1–2 mm stroke height change |
The angle at which you hold or set the squeegee dramatically affects the required pressure. A steeper angle (closer to vertical) reduces the contact area, often requiring slightly more force to achieve the same ink deposit, whereas a shallower angle increases contact, allowing for lower pressure but risking uncontrolled ink flow. Harder squeegee blades (75–85 Shore A) resist deformation and often need more pressure, while softer blades (60–65 Shore A) bend more easily and transfer ink with less force. Edge shape also matters: square edges offer better control for detail work, round edges lay down more ink for heavier coverage, and beveled edges strike a balance.
Different ink types behave differently under pressure. Plastisol inks, with their thicker consistency, typically work well under moderate pressure, whereas water-based inks can vary: low-viscosity versions may require less pressure to avoid flooding fine details, while high-solid-content water-based inks behave more like plastisol and may need similar force. UV inks, often used in non-textile applications, can be highly viscous and require increased pressure, especially when paired with high mesh counts.
Mesh count directly influences ink flow—lower counts with larger openings need less pressure, while higher counts require more force to push ink through. Similarly, stencil thickness affects resistance; a thicker emulsion layer requires greater pressure to achieve full transfer.
Printing on heavy, textured fabrics such as fleece or canvas demands more pressure to ensure the ink penetrates into the surface irregularities, whereas delicate fabrics like silk require minimal pressure to prevent distortion. Printing on rigid substrates like metal or glass requires a different approach altogether, often involving higher pressure but slower printing speeds.
Temperature and humidity change ink viscosity in real time. On hot, dry days, ink flows more easily and may require slightly less pressure; in cool, damp conditions, ink thickens and needs a touch more force. Observing these effects and adapting your settings accordingly prevents inconsistencies across production runs.
In real production environments, the "ideal" squeegee pressure is never a fixed number; rather, it is a dynamic setting that shifts depending on ink characteristics, mesh count, substrate type, stencil thickness, and even environmental conditions, which means that operators must develop the ability to read the print result, diagnose the cause of any inconsistency, and apply corrective adjustments without disrupting workflow.
When working with plastisol inks, which have a thick, paste-like viscosity and maintain stability over long runs, the goal is to apply just enough pressure to ensure full coverage without compressing the mesh excessively, which could drive ink under stencil edges and cause blurry details. For water-based inks, the approach is more variable: low-viscosity formulations can easily flood fine details if the pressure is too high, whereas high-solids water-based inks behave similarly to plastisol and may require a comparable amount of force. UV inks, often used for hard substrates like metal or acrylic panels, can be highly viscous and resistant to flow through fine meshes, so higher pressure, combined with slower print speeds and careful squeegee angle control, becomes essential for consistent ink laydown.
| Ink Type | Typical Viscosity (cps) | Pressure Implication |
|---|---|---|
| Plastisol | 500,000–800,000 | Moderate pressure |
| Water-based | 2,000–5,000 | Lower pressure, avoid flooding |
| UV ink | ≥1,000,000 | Higher pressure or slower print speed |
The number of threads per inch (mesh count) significantly influences how much force is needed to transfer ink. Low mesh counts (e.g., 80–110) have large openings that allow ink to pass easily, so minimal pressure is needed to achieve good coverage; too much pressure here risks flooding the substrate with excess ink. Conversely, high mesh counts (e.g., 230–305) present smaller openings that restrict ink flow, which means the operator must either increase pressure, use a softer squeegee, or slightly slow printing speed to allow sufficient ink transfer without damaging fine detail.
| Mesh Count (threads/inch) | Typical Pressure (N) | Common Applications |
|---|---|---|
| 80–110 | 15–20 | Heavy ink deposit, glitter, metallic inks |
| 156–180 | 20–25 | Standard textile prints |
| 230–305 | 25–35 | Fine detail, halftones, high-definition prints |
Printing on thick, textured fabrics such as hoodies or canvas requires a combination of moderate-to-high pressure and possibly multiple light passes to ensure ink penetrates the surface irregularities. Delicate textiles, like silk or lightweight polyester, require minimal pressure to avoid stretching or distorting the fabric. In non-textile applications, such as printing on plastic sheets, metal signs, or coated paperboard, the focus is on ensuring uniform contact without damaging the surface or forcing ink into places it shouldn't go.
Even experienced printers occasionally make pressure-related errors, and understanding both the symptoms and underlying causes is essential for quick correction.
•Mistake 1: Applying Excessive Pressure
This can cause ink to spread beyond intended boundaries, resulting in blurry images, oversaturation, and a heavy hand feel. Over time, it also accelerates wear on screens and blades. Correction: Reduce pressure incrementally, check blade sharpness (a dull edge often tempts operators to push harder), and verify squeegee angle.
•Mistake 2: Using the Same Pressure for All Materials
A setting that works for cotton T-shirts may fail completely on a polyester sports jersey or a rigid substrate. Correction: Recalibrate pressure for each job, taking into account ink viscosity, mesh count, and substrate texture.
•Mistake 3: Compensating for Equipment Wear with More Force
When squeegee blades become rounded or nicked, or when mesh tension drops, operators may instinctively increase pressure to force ink through, which worsens print quality and speeds up equipment failure. Correction: Replace or maintain consumables rather than masking the problem with higher pressure.
•Mistake 4: Skipping the Test Print Stage
Rushing straight into production without a test pass can result in dozens—or hundreds—of defective prints before the problem is noticed. Correction: Always run at least one test print after setup, even on repeat jobs, as small environmental changes can alter the ideal settings.
For printers who already understand the fundamentals, there are several advanced strategies that can bring squeegee pressure control to an even higher level of consistency and accuracy.
Instead of using one heavy pass to lay down a full ink layer—which risks flooding details and causing excessive dot gain—use two or more lighter passes. This technique allows ink to settle evenly, reduces mesh clogging, and improves gradient smoothness in halftone work. It is particularly effective for designs that require high opacity without sacrificing sharpness.
On wide-format prints or large graphics, pressure can vary across the length of the squeegee. Uneven force results in one side appearing darker or heavier than the other. To address this, check that the blade is mounted evenly and that the press applies equal force across its width. In manual setups, operators should consciously balance their weight and avoid leaning to one side.
Maintaining a log of successful print parameters—including squeegee pressure, angle, hardness, ink type, mesh count, and speed—not only speeds up setup for repeat jobs but also helps standardize quality across different operators and shifts. On modern automatic presses, these parameters can often be stored digitally and recalled instantly.
For the most precise calibration, a dedicated squeegee pressure gauge can measure the actual force applied to the mesh, usually in Newtons or kilograms-force. This removes guesswork, allows reproducibility across multiple machines, and ensures consistency between different operators.
| Parameter | Recommended Range | Benefit |
|---|---|---|
| Pressure variance between runs | ±2 N | Reduce defect rates & color inconsistency by up to 30% |
| Target consistency score | ≥95% | Ensure uniform quality in large-scale production |
Mastering squeegee pressure is not an isolated skill; it is an ongoing practice of observation, adjustment, and refinement that impacts every other aspect of the screen printing process. By understanding the mechanics of ink transfer, recognizing the signs of incorrect pressure, and applying targeted adjustments based on ink, substrate, and mesh characteristics, you can dramatically improve print quality while reducing waste and equipment wear. Over time, these gains translate into faster turnaround times, more satisfied customers, and a stronger reputation for quality—advantages that directly support business growth.
Q1: How can I tell if my squeegee pressure is correct without a gauge?
Look for even ink coverage, sharp edges, and no visible signs of bleeding or under-printing. If you see patchy areas or faint details, increase pressure slightly; if the print looks thick or blurred, reduce it.
Q2: Does squeegee pressure need to change for water-based inks?
Yes, because water-based inks often have lower viscosity and can flood fine details if over-pressured, yet high-solid-content water-based inks may need similar force to plastisol to achieve full opacity.
Q3: How often should I replace my squeegee blades?
Replace them when the edge becomes rounded, nicked, or visibly worn. This can be after as little as 80–100 production hours, depending on use and maintenance.
Q4: Can environmental conditions really affect squeegee pressure settings?
Indirectly, yes. Changes in temperature and humidity affect ink viscosity, which may require corresponding pressure adjustments to maintain consistent coverage and detail.
Q5: Is higher pressure always better for getting strong colors?
No—opacity is influenced by ink formulation, mesh count, and print technique. Excessive pressure often reduces detail quality and makes the print feel heavy.
Q6: What's the benefit of documenting my pressure settings?
It shortens setup time for repeat jobs, ensures consistency across operators, and makes troubleshooting easier when print quality issues arise.
