Author: Site Editor Publish Time: 2025-07-02 Origin: Site
In industries like screen printing and mineral specimen conservation, precision is everything. A single ink smudge on a finished garment or an accidental residue on a delicate fossil can ruin hours of work. Traditionally, these issues have been addressed with methods like complete garment washing or mechanical scraping—both of which are time-consuming and can damage the material.
That's where the spot cleaning gun comes in—a purpose-built tool designed for rapid, targeted cleaning. Whether you're dealing with a misprint in a silkscreen t-shirt or cleaning sediment from a mineral sample, the spot gun delivers a fast, controlled spray that removes stains without harming the substrate.
This guide explores the core value of the spot cleaning gun, explains its internal mechanisms, compares leading models, and offers expert advice for industrial and hobby users alike.
A spot gun operates on a simple but powerful principle: it atomizes a cleaning solution using compressed air and ejects it through a narrow nozzle for pinpoint precision.
• Solution Reservoir: Typically made from chemical-resistant plastic or glass, it holds the solvent. Different models support either water-based or strong solvent-based solutions.
• Air Pressure Control Valve: Allows fine-tuned PSI regulation, generally ranging from 0–100 PSI. Precision control is crucial for avoiding damage to fabrics or fragile objects.
• Corrosion-Resistant Nozzle: Usually constructed from brass or stainless steel, this component must withstand both pressure and harsh chemicals over time.
The gun draws solution from the reservoir, mixes it with air in a chamber, and expels it as a high-velocity mist. This atomized mist penetrates fibers or surface cracks, dislodging ink, adhesives, or contaminants on contact.
• For Screen Printing: Strong solvent blends containing MEK (methyl ethyl ketone), acetone, or cyclohexanone dissolve plastisol and water-based inks effectively.
• For Mineral Cleaning: Neutral pH, biodegradable solutions are ideal. These are gentle on fossilized surfaces while still removing dirt, calcite build-up, or organic contaminants.
Screen printers use spot guns daily to salvage nearly-finished garments or to maintain clean screens. Here are five critical scenarios where a spot cleaning gun outperforms manual methods:
• Unclogging Dried Ink in Mesh: Prevents the need for a complete reclaim.
• Removing Fingerprints and Smudges: Especially on light-colored fabrics during post-press inspection.
• Fixing Color Misregistration: Precision blasting helps remove out-of-place ink layers without reprinting.
• Eliminating Overspray or Splatter: Common when printing with high-viscosity inks.
• Post-Print Spot Cleaning: Reduces waste by salvaging misprinted garments. Example: Correcting a misplaced logo on a $40 hoodie within seconds.
Data Insight: A controlled test showed spot guns reduce correction time by up to 70% compared to traditional methods like cotton swabbing or soaking.
Spot cleaning guns also play a surprising role in geology labs and fossil conservation rooms.
• Pre-Soak at Low Pressure (20 PSI): Prepares dirt for removal.
• Gradual Pressure Increase (up to 60 PSI): For stubborn deposits.
• Dry Pass: Compressed air only to remove any leftover moisture.
• Agate Matrix Cleaning: Spot gun preserved micro-banding where brushes failed.
• Fossil Surface Detail Recovery: Delaminated chalk layers cleaned without scratching the fossil shell.
Avoid using spot guns on water-sensitive specimens like gypsum or salt crystals, as even low-moisture mist may initiate dissolution or surface pitting.
The right cleaning gun depends on your workflow, solvent compatibility, and runtime needs. Use this decision matrix for guidance:
| Feature | Industrial-Grade | Hobby-Level |
|---|---|---|
| Max Pressure (PSI) | 90–120 | 40–60 |
| Solvent Compatibility | Strong Solvents (MEK, etc.) | Water-based only |
| Continuous Runtime | 8+ Hours | Less than 30 minutes |
| Build Material | Stainless/Brass Internals | Mixed Plastics |
| Nozzle Customization | Yes | Limited or none |
• Ventilation is Critical: Always work in a space with active airflow. Solvent mist should stay under 1000 ppm concentration to comply with OSHA exposure limits.
• Protective Equipment:
Nitrile gloves (chemical resistant)
Splash-resistant goggles
Apron or coveralls

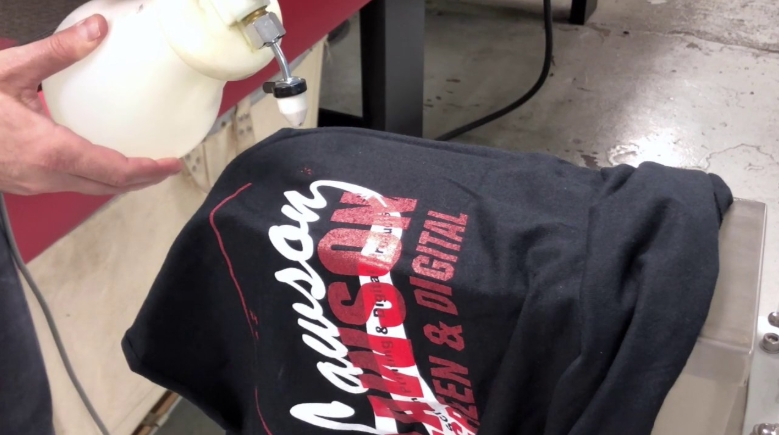

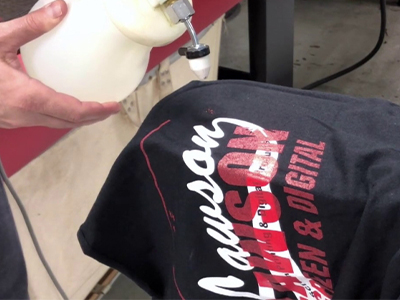

• Hold the nozzle 3 inches from the fabric, tilted at a 45° angle.
• Use the "blast-absorb cycle":
Short burst of solution
Dab with a lint-free cloth
Repeat until clean
This method avoids deep fiber penetration and keeps your substrate intact.
• For laminated or layered rocks, work one layer at a time. Use masking or physical barriers to protect untouched areas.
• Use netted cradles to support fragile specimens while cleaning. This reduces mechanical stress during pressure bursts.
Whether you're running a 500-shirt-per-hour print shop or preparing delicate trilobite fossils for museum display, the spot cleaning gun is a must-have. It saves time, protects surfaces, and delivers the precision professionals need.
As industries demand more sustainable and efficient processes, investing in the right spot gun—paired with compatible cleaning agents—can significantly reduce waste and increase output quality.
Want to learn more about the best models or request bulk pricing? Contact us today to explore our range of spot cleaning solutions for screen printers and fossil professionals.
• Can a spot cleaning gun be used on all fabrics?
Most cotton, polyester, and blended textiles are compatible. Test on delicate or treated fabrics first.
• What solvents are safe to use in my spot gun?
Always follow the manufacturer's guidelines. Strong solvents like MEK are suitable for plastisol ink but not safe for indoor use without ventilation.
• How often should I clean my spot gun nozzle?
After every use or solvent change. Residue buildup may clog the nozzle or affect spray precision.
• Is there a battery-powered version of the spot gun?
Currently, most industrial versions require a compressed air line. Some hobbyist models may use small electric compressors.
• Can I use a spot cleaning gun for leather or suede?
It's not recommended, as solvent spray may discolor or damage porous surfaces.
