In the world of garment decoration, Direct to Film (DTF) printing has become a transformative technology for both small studios and large-scale production lines. Yet, one of the most misunderstood—but absolutely essential—steps in the DTF process is mirroring the design before printing.
If your image prints backward, text appears reversed, or logo alignment goes wrong, the root cause is almost always a failure to mirror your DTF transfer file correctly. For DTF business owners and factory technicians, mastering this detail is not optional—it's the foundation of accurate, efficient, and professional print results.
This comprehensive guide by Hanze, a leading manufacturer of DTF printers, films, and heat transfer consumables, explains why and how to mirror your DTF transfers correctly, outlines common mistakes, provides step-by-step software instructions, and shares pro-level troubleshooting strategies used by top garment production facilities worldwide.
Mirroring (also called flipping horizontally) refers to reversing your artwork before printing, so that when the transfer is applied face-down onto fabric, it appears correctly to the viewer.
Think of it like looking into a mirror: the design you print on the film is reversed so that, after transfer, the finished print reads normally.
In DTF printing, you print your design onto a clear or semi-transparent PET film, not directly on fabric. The sequence of printing and transferring requires the image to be flipped horizontally because:
1. The DTF printer prints color first, then applies white ink on top as a backing layer.
2. During heat pressing, the film is placed face-down on the garment, meaning the first layer (color) ends up on top after transfer.
3. If you don't mirror the design, the transferred print will appear backward—especially noticeable with logos or text.
In short, mirroring ensures the design's visual orientation is correct once it's pressed onto the fabric.
For business owners running multiple production lines, understanding why mirroring is crucial helps standardize procedures across operators and machines.
The most obvious reason: if you skip mirroring, your print will appear in reverse. This not only ruins the garment but also wastes DTF film, ink, and time—especially costly when printing bulk orders.
Many fashion and sportswear clients have logos, emblems, and typography that demand pixel-perfect orientation. A mirrored mistake in a high-volume order can destroy hundreds of pieces and jeopardize contracts.
Different materials—cotton, polyester, nylon, or blends—require varying heat and pressure settings. However, the mirroring rule never changes. Whether printing a cotton T-shirt or a polyester jacket, the transfer orientation must always be flipped before printing.
DTF's layer order (CMYK first, white ink second) means the mirrored orientation ensures the color layer faces outward after pressing. This alignment is vital for image clarity, vibrancy, and durability.
Mirroring can be done within your design software (e.g., Photoshop or Illustrator) or in your RIP software (like Maintop, Cadlink, or PrintFactory) before printing.
Below is a professional workflow that ensures zero orientation errors across production.
•Open your design file in your preferred software (PSD, AI, PNG, or TIFF).
•Ensure the resolution is 300 DPI for crisp print quality.
•Convert text to outlines to prevent font substitution.
•Double-check bleed areas and alignment marks.
Pro Tip: If your production line uses Hanze DTF Printers, the built-in RIP utility automatically detects orientation metadata, reducing manual flipping errors.
Depending on your software:
•Adobe Photoshop:
Go to Image > Image Rotation > Flip Canvas Horizontal.
•Adobe Illustrator:
Select all objects → Object > Transform > Reflect > Horizontal → Click OK.
•CorelDRAW:
Use the Mirror Horizontally icon on the toolbar.
•RIP Software (e.g., Maintop, Cadlink, PrintFactory):
Enable "Mirror" or "Flip Horizontal" in the print settings menu.
Make this step part of your standard print preset, especially for repetitive designs.
•Save your mirrored file as TIFF or PNG with transparent background.
•Ensure the color profile matches your printer setup (usually CMYK).
•Maintain consistent file naming conventions, e.g., DesignName_MIRRORED_v2.tiff.

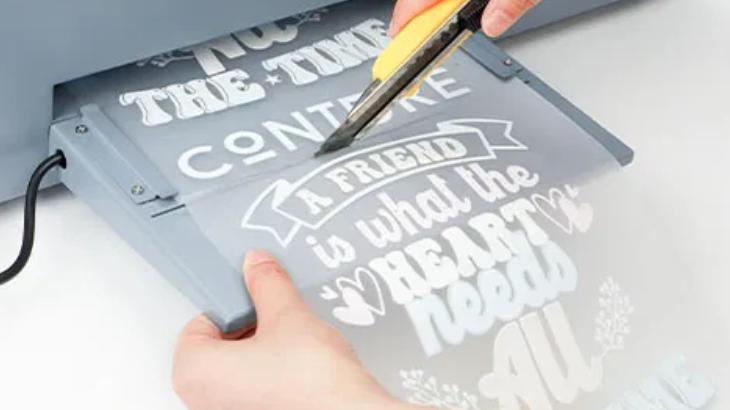

Use Hanze DTF film, ensuring the printable side faces up.
PET film often has a matte printing side and a glossy backing side—printing on the wrong surface causes ink smudging or poor adhesion.
Pro Tip: Hanze's high-performance PET heat transfer film minimizes color distortion during high-temperature pressing, ensuring mirrored images stay crisp and aligned.
After printing, immediately coat the wet ink layer with hot-melt adhesive powder. Shake off excess powder evenly using a Hanze DTF shaker for uniform coating.
This layer bonds the ink to the fabric during heat pressing. Uneven powder distribution can distort mirrored designs, especially in fine lettering.
Cure the printed film using a Hanze DTF oven or a heat press pre-curing mode (typically 100–120°C for 2–3 minutes).
Then press the design onto the garment at 160°C (320°F) for 15 seconds with medium pressure.
Peel type depends on your film (cold or warm peel). After peeling, your mirrored design now appears correctly on the fabric.
Even experienced technicians occasionally misstep in file orientation or print alignment. Below are frequent mirroring mistakes and their solutions.
Symptom: Design appears backward on the final garment.
Fix: Always add a mirror check step in your RIP workflow. Create a visual checklist or enable "auto-mirror" in DTF printer software.
Symptom: The design prints normally but transfers backward.
Fix: Ensure only one system handles mirroring—either the design software or the RIP, not both.
Symptom: Ink smudging, loss of detail, or reversed texture.
Fix: Always print on the matte side of the film. DTF films are labeled with "PRINT SIDE UP" for quick identification.
Symptom: Color edges appear offset or blurry after transfer.
Fix: Calibrate your white ink alignment in RIP. The mirrored image must preserve perfect layer registration between CMYK and white.
Symptom: Jagged edges or pixelated prints even after correct mirroring.
Fix: Use at least 300 DPI and vector files when possible. RIP supports vector-based rendering for sharp, mirrored output.
Different software ecosystems manage mirroring differently. Below are expert recommendations for three major software platforms.
•Always convert your artwork to a transparent PNG.
•Use Flip Canvas Horizontal before export.
•To double-check, add small test text (like "MIRROR OK")—if it reads backward on your screen, it will print correctly on fabric.
•Use the Reflect Tool (O) for precision mirroring of grouped objects.
•Keep alignment guides locked to prevent accidental displacement after reflection.
•Save as PDF/X-4 or TIFF for compatibility with RIP.
For production environments using Hanze DTF Printers:
•Go to Job Properties > Layout > Mirror.
•Enable "Mirror Print on X-Axis."
•Save this as your default template to automate mirroring for every job.
Tip: RIP software also logs print orientation in the production report, allowing supervisors to track operator consistency.
Even with correct mirroring, print alignment can sometimes drift due to media feeding, ink flow, or film tension.
Below are advanced troubleshooting methods for factory operators.
•Check platen tension and clean print heads.
•Verify white ink layer offset in RIP.
•Run nozzle check—banding can distort mirrored image edges.
•Occurs when the PET film absorbs moisture or overheats.
•Use Hanze's heat-resistant DTF film to maintain dimensional stability during long runs.
•Store film in a dry environment (humidity < 60%).
•Caused by film movement during heat pressing.
•Secure the film with heat-resistant tape before pressing.
•Avoid re-pressing already transferred images.
•May result from mismatched temperature or curing inconsistencies.
•Use calibrated Hanze DTF ovens and verified powder-to-ink ratios.
Yes, always. The DTF process involves flipping the film during heat transfer, so the printed image must be mirrored beforehand to appear correctly after pressing.
Yes. Most professional RIPs—including RIP—have a "mirror" checkbox. For production lines, enabling this at the printer level ensures consistency across operators.
Your final print will appear reversed—text unreadable, logos backward, and images misaligned. The only fix is to reprint the job with proper mirroring.
Yes. Mirroring is independent of fabric color. It's determined by the film-transfer method, not by substrate shade.
Yes. In RIP, you can save custom job templates with "Mirror" enabled by default. This minimizes operator error and accelerates bulk workflows.
This may result from overheating, excessive pressure, or incorrect curing. Check your powder layer, press settings, and film compatibility.
Unfortunately, no. Once heat pressed, the image is permanent. Prevention through workflow discipline is the only real solution.
Mirroring DTF transfers is more than a minor technical step—it's the difference between professional, sale-ready garments and wasted materials. For DTF printing businesses and garment factories, establishing a consistent mirroring workflow ensures brand integrity, production efficiency, and client satisfaction.
By mastering the mirroring process, using high-quality Hanze DTF films, printers, shakers, and powders, and implementing robust print-check systems, your team can eliminate costly orientation errors and maintain world-class production standards. Contact Hanze for DTF Product Support to upgrade your transfer workflow today.
