If your prints look soft, your stencil breaks down mid-run, or you keep fighting pinholes, the root cause is often the same: screen preparation. Learning how to create a screen using emulsion isn't hard, but it is detail-sensitive. Small choices—like degreasing properly, coating thickness, drying conditions, film positive opacity, and exposure time—can decide whether you get crisp lines or a frustrating washout.
This guide walks you through the full screen making process: degrease → coat → dry → expose → washout → blockout → ready to print. You'll also get practical troubleshooting for underexposed emulsion, overexposed emulsion, pinholes, and image blur, plus tables and checklists you can save for shop use.
Screen printing emulsion (also called photo emulsion) is a light-sensitive coating that turns your mesh into a printable screen printing stencil. When exposed to UV light, the emulsion hardens. Wherever your film positive blocks light, the emulsion stays soft and washes out, creating open mesh areas that let ink pass through.
In other words:
•UV hits emulsion → emulsion hardens
•UV blocked by artwork → emulsion stays soluble
•Rinseout/washout → image appears as open mesh
This is why the two biggest success factors are:
1. Perfect contact and opacity of your film positive
2. Correct exposure time for your emulsion + mesh + light source
Not all emulsions behave the same. Pick based on ink type, exposure setup, and how fast you need results.
| Emulsion Type | Common Name | Pros | Cons | Best For |
|---|---|---|---|---|
| Diazo | "Mix with sensitizer" | Forgiving exposure latitude, durable stencil | Longer dry time, needs mixing, shorter working life after mixing | General shops, learning phase |
| Photopolymer | "Pre-sensitized" | Fast exposure, consistent, no mixing | Can be less forgiving if exposure control is weak | Production, consistent exposure units |
| Dual-cure | "Diazo + photo" | Strong stencil, good chemical resistance | Requires mixing, needs good process control | Mixed inks, longer runs |
Tip: If you print both plastisol and water-based inks, prioritize an emulsion known for strong water resistance and durability. If you're new and exposure control is inconsistent, a more forgiving system can reduce failures.
You don't need a full industrial darkroom, but you do need process consistency.
Essentials
•Screen printing frame + screen printing mesh (mesh count appropriate to artwork)
•Screen degreaser (or dedicated screen prep chemical)
•Coating trough / scoop coater
•Photo emulsion (and sensitizer if required)
•Light-safe drying area (dim, low UV)
•Exposure light source (UV LED unit, metal halide, or controlled lamp setup)
•Film positive / artwork positive (high opacity)
•Washout booth / hose with gentle spray nozzle
•Blocking tape + screen filler / blockout
•Gloves, safety glasses, and a clean workspace
Optional but helpful
•Drying cabinet or fan + filtered airflow
•Exposure calculator strip (to dial exposure time faster)
•Stencil inspection light (to spot pinholes)
If emulsion adhesion issues keep happening—fish-eyes, craters, or random peeling—your mesh is usually contaminated. Oils from hands, dust, and manufacturing residues prevent the emulsion from bonding evenly.
Best practice for screen degreasing
•Rinse the screen with water first (both sides).
•Apply degreaser and scrub gently with a dedicated brush or pad.
•Let chemistry work for the recommended dwell time (don't let it dry on).
•Rinse thoroughly until water "sheets" evenly across the mesh.
Quick test: After rinsing, if water beads up, the screen is not truly clean.
Pro habit: Handle the mesh edges/frame, not the mesh surface, after degreasing.
If you're using diazo or dual-cure, emulsion mixing affects exposure behavior and stencil durability.
Emulsion mixing tips
•Mix sensitizer fully (no grainy residue).
•Stir gently to avoid bubbles (bubbles create pinholes).
•Let the emulsion rest (de-foam) before coating.
•Store emulsion cool and dark; track emulsion shelf life and "mixed date."
Pre-sensitized emulsions are simpler—still keep lids closed and avoid light exposure.

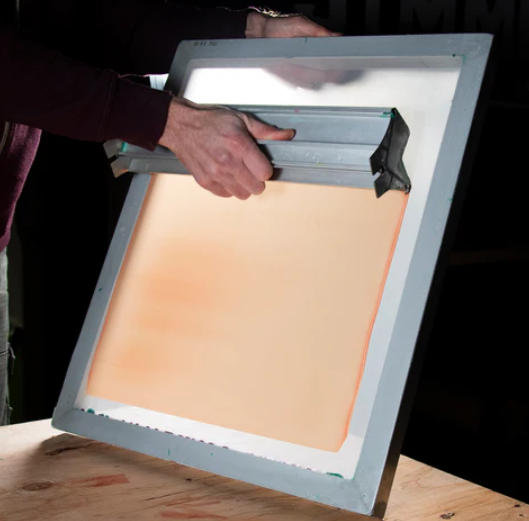

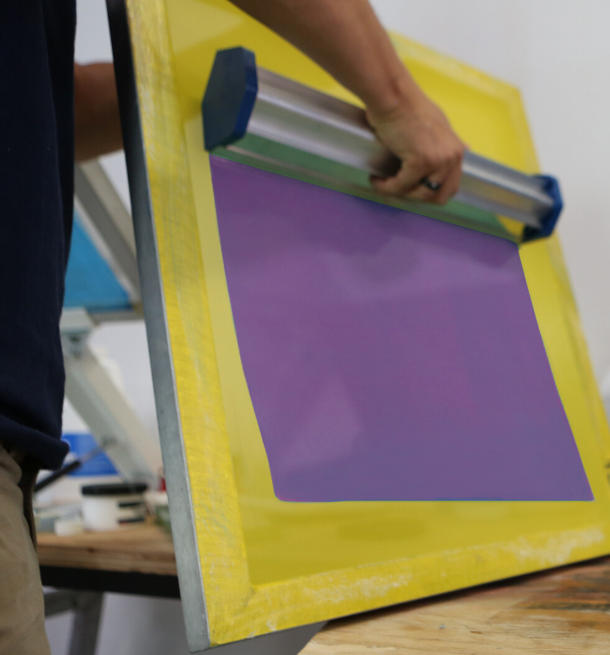

Coating quality controls your stencil thickness, which impacts print deposit and exposure time.

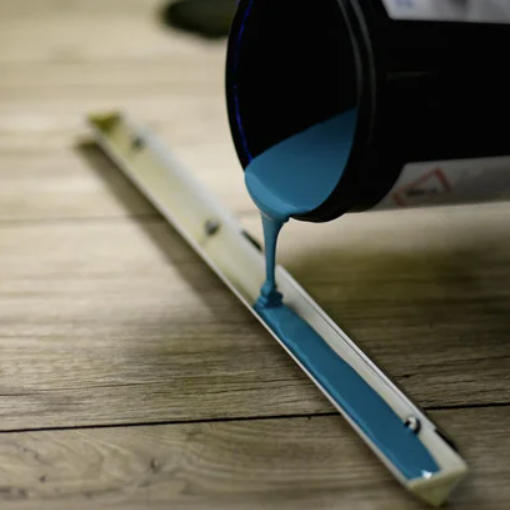

1. Pour emulsion into the coating trough.
2. Hold the coater firmly against the mesh at a consistent angle.
3. Coat print side first, then coat squeegee side (common approach).
4. Use smooth, continuous passes—avoid stopping mid-stroke.
Key coating variables
•Emulsion thickness: thicker stencils need longer exposure and can reduce detail
•Even coverage: streaks and thin spots cause weak areas and premature breakdown
•Single vs double coat: double coating can improve durability for heavier ink deposits
Rule of thumb: Fine detail favors thinner, controlled coating; heavy deposit work favors a slightly thicker stencil (but only with correct exposure).

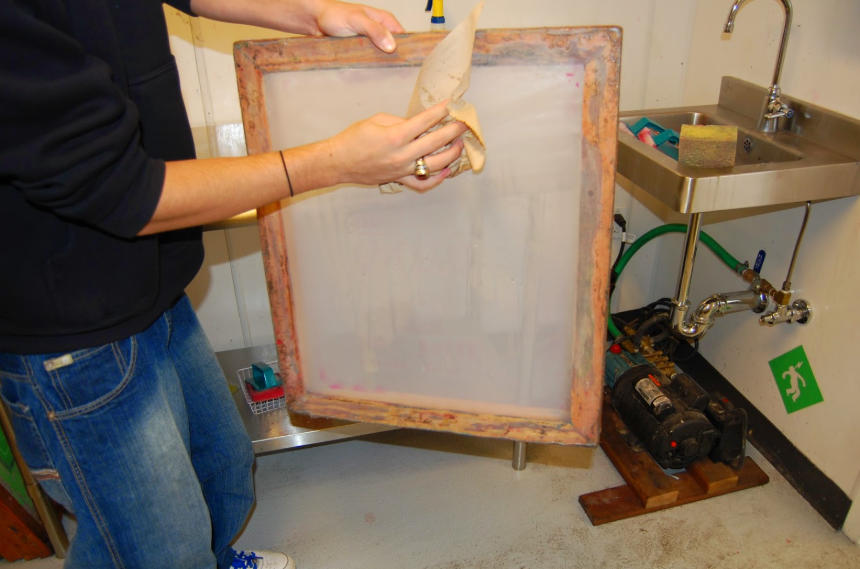

Drying screens is not "just waiting." Poor drying can cause sticky emulsion, soft spots, and exposure inconsistencies.
Best drying conditions
•Dark or light-safe space (avoid stray UV)
•Moderate airflow (filtered, not dusty)
•Low humidity
•Screen placed horizontally or vertically depending on your method, but keep dust off
Drying checklist
•Emulsion feels fully dry to the touch (not cool/tacky)
•No wet edges along the frame
•No visible streaks or drips
If your shop is humid, drying time increases—rushing exposure is a common reason for washout failures.
A weak film positive is one of the fastest ways to get blurred edges and detail loss.
What "good" looks like
•Solid black where you need blocking
•Clean edges, no banding
•Enough opacity to block UV (especially for fine text)
Common film positive problems
•"Dark gray" blacks → light leaks → stencil partially hardens where it should wash out
•Poor contact → fuzzy edges
•Low-resolution artwork → jagged lines
Tip: If your exposure looks right but small details keep filling in, increase film opacity and improve contact first before changing exposure time.
Exposure is where most shops "almost" succeed. The goal is to harden the emulsion everywhere except your image area.
•Emulsion type (diazo vs photopolymer vs dual-cure)
•Mesh count (higher mesh = less emulsion volume, often shorter exposure)
•Coating thickness
•Light source strength and wavelength
•Distance from lamp (inverse-square effect)
•Vacuum/contact quality with film positive
•Ambient temperature and humidity

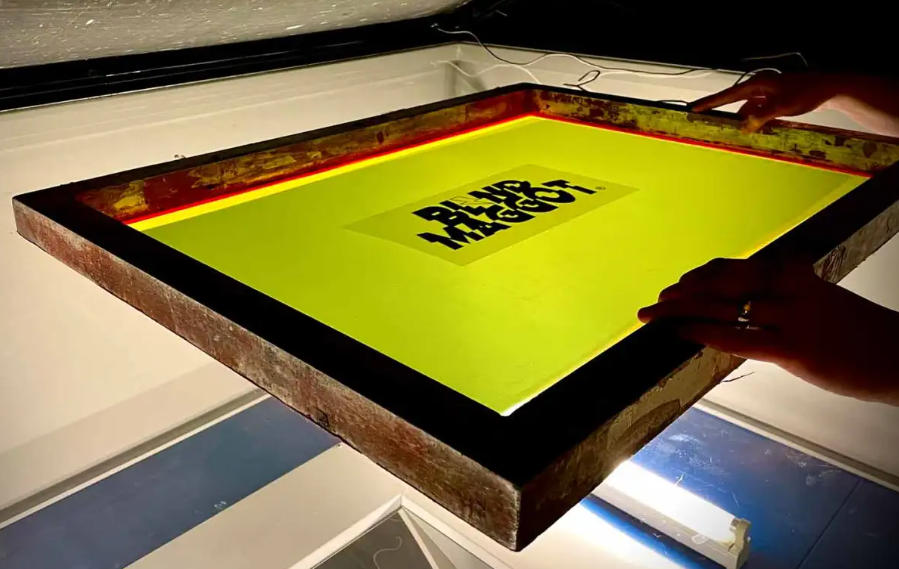

•Place the film positive on the print side (typical) for sharper edges.
•Ensure tight contact—use glass and weight, or a vacuum frame if available.
•Keep distance consistent every time.
| Symptom | Likely Cause | Fix |
|---|---|---|
| Emulsion washes out everywhere | Underexposed emulsion / screen not fully dry | Increase exposure time; improve drying; verify lamp output |
| Image won't wash out | Overexposed emulsion / light leaks around positive | Reduce exposure; improve positive opacity; improve contact; block stray light |
| Edges look fuzzy | Poor positive contact / underexposure / light scatter | Improve contact (glass/vacuum); increase opacity; adjust exposure |
| Stencil breaks down during printing | Underexposed or too thin / chemical mismatch | Increase exposure; adjust coating; choose more durable emulsion |
| Pinholes in stencil | Dust, bubbles, poor degreasing | Improve cleaning; de-foam emulsion; control drying area |
Best practice: Use an exposure calculator strip once per emulsion batch or when your lamp changes. It saves hours of guesswork.
Washout is where your stencil becomes visible. The goal is to remove only the unexposed emulsion.
Washout method
1. Wet both sides with gentle water to soften the unexposed emulsion.
2. Let it soak briefly (don't over-soak).
3. Use a gentle spray to open the image area.
4. Increase pressure only if needed—too much pressure can blow out fine details.
If details won't open
•Your positive may be too transparent (light is leaking through)
•You may be overexposed
•You may not be using enough soak time to soften unexposed emulsion
If stencil feels slimy or weak
•You may be underexposed
•Screen might not have been fully dry before exposure
Once the image is open:
•Dry the screen completely again.
•Inspect under light for pinholes and weak areas.
•Use screen filler or blockout to patch pinholes.
•Tape frame edges (blocking tape) to reduce edge leakage during printing.
Quality check before printing
•Lines are crisp and open
•No haze in non-image areas
•No pinholes in solid ink regions
•Stencil feels hard and durable, not soft
You might still "get an image," but stencil life and edge quality suffer.
Dust becomes pinholes. Control airflow and keep drying space clean.
This causes inconsistent hardening—often looks like underexposure even when time is correct.
If blacks aren't truly opaque, you'll chase exposure time endlessly.
When troubleshooting, adjust one variable at a time: contact → positive opacity → exposure time → coating thickness.
Use these as image blocks or photo prompts for your editor/team:
1. Scoop coater angle close-up (show consistent coating pass)
2. Film positive on screen with glass contact (top-down shot)
3. Before/after washout (same screen: exposed vs developed)
4. Troubleshooting gallery: underexposed vs overexposed vs pinholes
5. Checklist graphic (printable workflow)
• How long should I let emulsion dry before exposure?
Dry until the coating is completely non-tacky and evenly dry across the mesh and edges. Humidity is the biggest variable—build a consistent drying method and avoid rushing.
• Why do I keep getting pinholes in my stencil?
Pinholes usually come from dust, bubbles in the emulsion, or incomplete degreasing. Improve screen cleaning, let mixed emulsion de-foam, and keep the drying area clean and low-dust.
• What causes blurry edges after exposure and washout?
Most often it's poor contact between film positive and screen, or a film positive that doesn't block enough UV. Improve contact pressure/vacuum and increase positive opacity before changing exposure time.
• How do I know if my screen is underexposed or overexposed?
If everything washes away easily, it's typically underexposed (or not dry). If the image won't open, it's typically overexposed or the positive isn't blocking UV properly.
• Can I use the same emulsion for plastisol and water-based ink?
Some emulsions are dual-purpose, but durability varies by chemistry. If you run water-based inks or aggressive cleaners, choose an emulsion known for strong water resistance and chemical resistance.
• Why does my stencil break down during printing even though exposure "seems fine"?
Stencil breakdown often happens when exposure is slightly low, coating is too thin for the ink deposit, or chemicals/inks are harsher than the emulsion can tolerate. Increase exposure incrementally and confirm emulsion suitability for your ink system.
• Do I need an exposure unit, or can I use a lamp setup?
A controlled exposure unit improves consistency and repeatability. Lamp setups can work, but you must standardize distance, time, and contact method and re-test when bulbs age.
• How should I store unused emulsion?
Keep it sealed, cool, and dark. Track shelf life, especially after mixing sensitizer—mixed emulsions typically have a shorter usable window.
