Author: Site Editor Publish Time: 2025-11-13 Origin: Site
In screen printing, size really does matter. Most printers think about how big their press is or how many shirts they can run in an hour. But the small stuff — scoop coaters and squeegees — quietly decide whether your day goes smoothly or turns into a frustrating mess of re-burns and reprints.
If you're fighting streaky coatings, random ink lines, uneven prints, or exposure that never seems quite right, it's not always your emulsion or your mesh. Very often, the tools in your hands are simply the wrong size for the screens and designs you're working with.
Let's break down how to choose scoop coater and squeegee sizes that actually work in a real shop, not just in theory.
Every time you coat or print a screen, you're trying to keep things as even and predictable as possible:
•Even emulsion thickness so exposure time makes sense
•Even ink laydown so the print looks the same from left to right
When your tools are sized right:
•You can coat each side of the screen in one smooth pass
•Emulsion doesn't pile up in ridges or patchy strips
•Ink clears the whole image area without leaving heavy lines or dry spots
•Mesh tension and frames take less abuse, so your screens last longer
When they're the wrong size, a lot of familiar problems start to show up:
•Thick bands of emulsion where two coating strokes overlap
•Spots that are hard to expose or wash out cleanly
•Ink ridges in the middle of the print because the squeegee is too narrow
•That horrible "bang" when a squeegee or scoop coater hits the frame
Before you blame chemistry or mesh, it's worth asking: is this tool actually the right width for what I'm trying to do?
Let's start with scoop coaters.
Choosing a scoop coater size shouldn't feel like rocket science. You're really checking two things:
1. It has to fit inside the squeegee side of the frame without touching the edges.
2. It has to be wide enough to cover the area you need in one pass.
A simple rule that works in most shops is:
Aim for a scoop coater that is slightly smaller than the inside width of the screen,
leaving around 1–2 inches of clearance on each side.
That small gap keeps the coater from slamming into the frame, but still lets you coat a large, even strip of emulsion.
When the coater is wider than it should be, you'll feel it immediately:
•It hits the frame before you reach the top of your stroke
•The coating stroke gets cut short, leaving thin or bare areas
•The edge of the coater can chatter or jump, leaving streaks and thin spots
•Repeated impacts slowly beat up your frame and can stress the mesh
You end up doing "fixing passes" or trying to baby the stroke, and coating becomes way more work than it needs to be.
On paper, using a narrow coater and doing two passes sounds workable: coat one half, then coat the other half. In practice, it usually creates a new set of problems:
•Where the two passes overlap, you get a thicker band of emulsion
•That band needs more exposure time than the rest of the screen
•Fine detail or halftones in that area can easily under-expose or wash out badly
You can make it work in a pinch, but if you find yourself coating in two passes all the time, it's a sign you simply need a wider coater.
You already have a good quick chart. Here it is in a slightly clearer way, with a tiny bit of context added:
| Screen Size (outside) | Suggested Scoop Coater | Notes |
|---|---|---|
| 16 × 20 | 16" | Usually coat sideways (landscape) |
| 20 × 24 | 16" | Common for small and medium prints |
| 23 × 31 | 19" | A standard choice for apparel shops |
| 25 × 36 | 20" | Great for larger front/back graphics |
| 42 × 48 | 24" | For oversized and specialty prints |
The nice part is you don't need a full set of coaters for every frame you own. Most shops comfortably work with one or two sizes that match their main screens. For example, if you mostly print on 20 × 24 and 23 × 31 frames, a 16" and a 19" coater will get you through almost everything.
When you're planning a job, you don't have to overthink it. Just run through a quick mental checklist:
•Which frame am I using?
20 × 24, 23 × 31, something bigger?
•How big is the design and where does it sit on the screen?
Do you need emulsion to get close to the frame edges?
•Can I coat the squeegee side in one clean pass?
If not, the coater is probably too small.
•Is this job going to repeat a lot?
If it's a regular order, pick a frame + coater combo that works well and write it down. Then you just repeat that setup next time and get the same results.
After a few runs, you'll start grabbing the right scoop coater without even thinking about it.

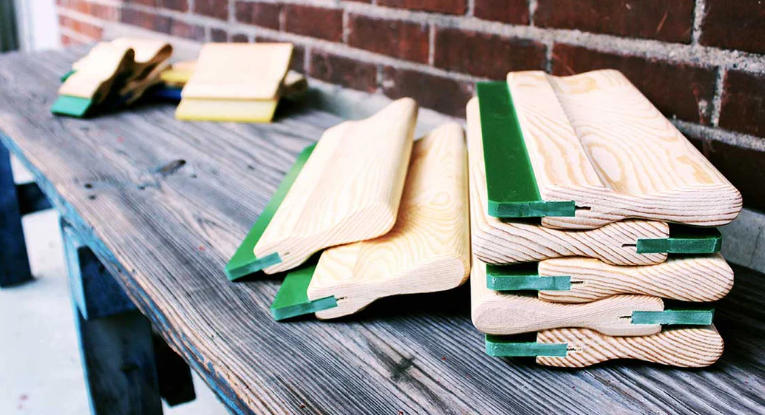

Now, let's talk squeegees.
The logic is almost the same: the squeegee needs to be comfortable inside the frame and wide enough to cover the image with a bit of room on both sides. If you want to explore blade types, handle styles, and materials in more depth, you can read our ultimate guide to screen printing squeegees.
The easiest way to think about it is:
Squeegee width ≈ image width + 2 inches
(about 1 inch of extra blade on each side of the design)
That extra inch on each side gives you room to push excess ink beyond the edges of the print, instead of letting ink pile up right on the image.

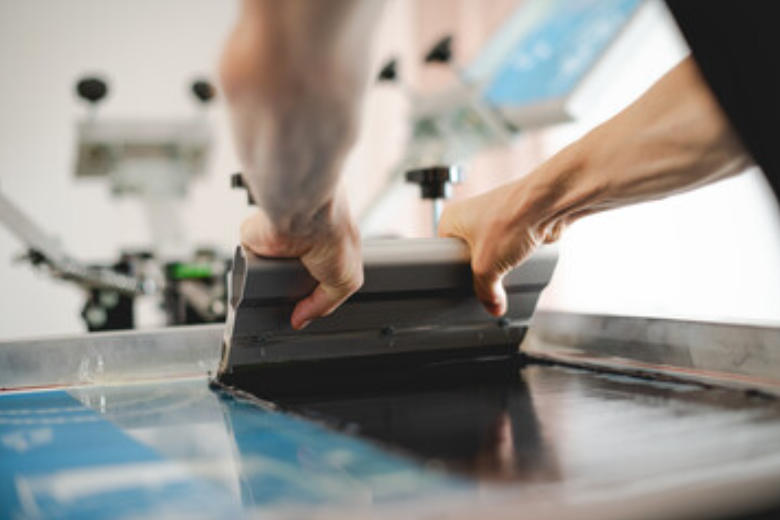

When the squeegee is narrower than the image area:
•Ink builds up along the edges of the blade
•That ink often lands right in the middle of your print as a raised line or stripe
•You end up doing a second pass at an angle just to clean up that line
•Large, solid prints can look streaky or patchy, especially on darker garments
You can fight it with technique, but in production it's much easier to start with a wider squeegee.
And if the squeegee isn't cleaned properly between jobs, those dried edges will continue leaving lines in your prints. If you're unsure how to clean the blade safely, you can follow our guide on how to clean a screen printing squeegee.

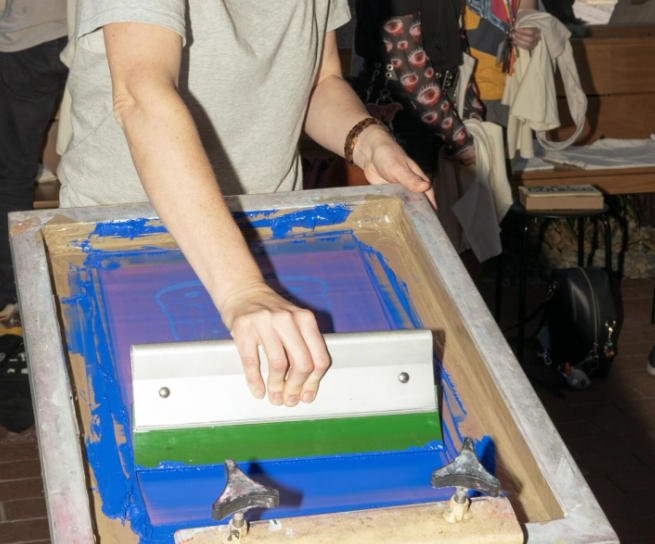

A squeegee that's too wide brings a different set of risks:
•The blade can hit the frame or clamps at the ends of the stroke
•If it drags across pockets, seams, zippers, or collars, you'll lose pressure and get uneven prints
•Hard hits against the frame can stretch or even pop the mesh over time
And there's the human factor: a very wide squeegee is heavier and harder to control, especially on a manual press. If your operator is constantly fighting the tool, consistency will suffer.

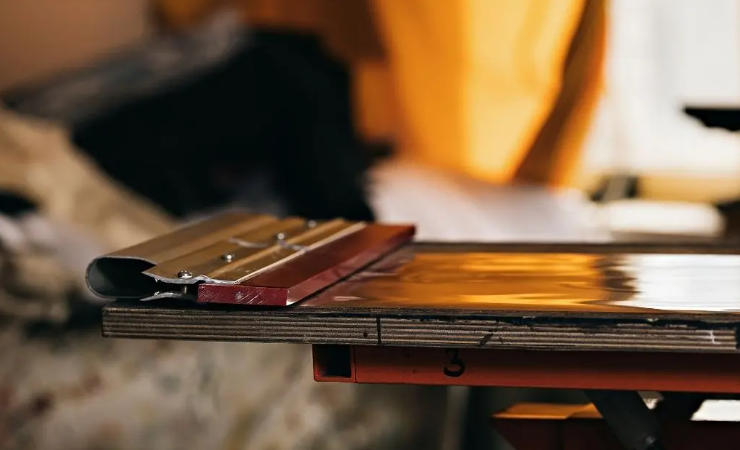

There are squeegees from 2" all the way up to 72", but most manual shops live in a much smaller range.
For standard t-shirt printing, 12" to 14" is the sweet spot:
•Perfect for most front and back graphics
•Easy to control without killing your shoulders
•Works great for designs in the 8"–11" range
You can absolutely print an 8" design with a 14" squeegee. The extra width just gives you more space to manage ink.
If you're starting out and don't want to overbuy, a 14" squeegee is a very safe first choice.
Left chest prints are usually no wider than 3"–4". For those, a 6" squeegee is ideal:
•You still get that 1" of margin on each side of the design
•The tool is light and easy to control
•It's also great for sleeve prints, neck labels, and small logos
A lot of shops run a simple combo: 6" for small stuff, 14" for regular prints, plus one or two wider blades for oversized work. For a broader overview of blade shapes, materials, and usage situations, you can check our guide on choosing the right screen printing squeegees.
For big fashion prints and oversized designs that take up most of the front or back of the shirt, you'll want something in the 16"–18" range:
•It covers large graphics in one clean stroke
•It pairs nicely with bigger screens like 25 × 36 or 42 × 48
•It saves you from awkward diagonal passes and weird stroke patterns
Just keep an eye on your clearances so you're not smacking the frame at the end of the stroke.
Here's how these choices play out in everyday shop situations:
•Left chest logo (around 3"–4" wide)
Frame: 16 × 20 or 20 × 24
Scoop coater: 16"
Squeegee: 6"
•Standard front print (around 8"–10" wide)
Frame: 20 × 24 or 23 × 31
Scoop coater: 16" or 19"
Squeegee: 12"–14"
•Large back print (around 12"–14" wide)
Frame: 23 × 31 or 25 × 36
Scoop coater: 19" or 20"
Squeegee: 14"–16"
•Oversized fashion print
Frame: 25 × 36 or 42 × 48
Scoop coater: 20"–24"
Squeegee: 16"–18" (or wider, as long as it doesn't hit the frame)
You don't have to match these numbers perfectly every time, but having a mental picture of these ranges makes your decisions much easier and more consistent.
Sometimes the fastest way to diagnose a size problem is to look at what's happening on the screen or the shirt.
Signs your scoop coater size is wrong:
•You're regularly stopping mid-stroke because the coater hits the frame
•The top of the screen or the sides always seem a little thin on emulsion
•You see diagonal "bands" of thicker emulsion across the mesh where passes overlap
•Exposure feels finicky, and some areas wash out fine while others are stubborn
Signs your squeegee size is wrong:
•You see a visible line of ink running across the print, usually where the blade edge stops
•You rely on an extra angled pass just to clean up ink lines
•The squeegee hits the frame or clamps at the end of the stroke
•Prints look great in the center but weak or distorted near seams, pockets, or zippers
Once you've seen these a few times, it becomes second nature to say, "Okay, this isn't an ink problem — I just need a different squeegee or coater."
Before you burn or print a job, take half a minute and run through this quick check:
•Does the frame size match the design, or am I forcing it?
•Does the scoop coater fit comfortably inside the squeegee side and cover the area I need in one pass?
•Is the squeegee at least a little wider than the image area, without coming close to the frame or hardware?
•If this is a repeat job, am I using the same frame and tools I used last time?
This tiny habit saves a lot of time, emulsion, and good moods. Once your sizing choices are in place, maintaining the blade itself becomes just as important—our screen printing squeegee maintenance tips.
Q1. Do I really need different scoop coaters for every screen size?
No. Most shops live happily with one or two scoop coater sizes. Start from your most-used frames and pick coaters that fit those well. If you find yourself constantly coating in two passes on a certain frame, that's the frame that deserves its own coater.
Q2. Is it okay to coat a screen in two passes if my coater is too small?
You can do it in an emergency, but it's not ideal. The overlap line is usually thicker and harder to expose correctly. If that screen is important or used often, it's easier and more consistent to invest in a properly sized coater.
Q3. How exact does my squeegee width need to be?
It doesn't need to be laser-precise. A little wider is usually better than a little too narrow, as long as you're not hitting the frame. A 14" squeegee printing an 8" design is perfectly fine.
Q4. Does mesh count or ink type change how wide my squeegee should be?
Not really. Mesh count and ink type affect squeegee durometer, angle, and pressure more than width. Width still comes down to the size of the image and the frame. Get the width in the right ballpark first, then fine-tune with hardness and angle.
Q5. What about automatic presses? Is sizing different there?
The logic is the same: match the squeegee to the image plus a little margin, and match the scoop coater to the frame. The only difference is that on autos, bigger and heavier squeegees hit harder, so it's even more important to make sure they never come into contact with the frame or clamps.
