Heat Transfer Printing Process & Equipment Guide | Beginner to Pro

Author: Site Editor     Publish Time: 2025-05-23      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Heat transfer printing is a popular technique used to apply designs onto a wide range of surfaces. From textiles and ceramics to metal products, this method is valued for its adaptability and long-lasting results. In the sections below, we'll break down how heat transfer printing works, its practical applications, and the benefits it offers.


Heat transfer printing

Understanding the Heat Transfer Printing Process

Heat transfer printing works by applying heat and pressure to move a design from a specialized transfer paper onto a fabric or another type of surface. Initially, the design is printed onto the transfer paper using a dedicated heat transfer printer. Afterward, the paper is carefully positioned on the target material, and a heat press is used to apply consistent heat and pressure. This causes the wax-based ink on the transfer paper to melt and permanently adhere to the chosen substrate.

Heat Transfer Materials System

The heat transfer printing process relies on a specific type of printer that operates with specialized wax-based inks. These inks are applied using an ink ribbon, which produces the final image. This image is then transferred to the fabric or object using a heat press, where heat activates the wax, allowing it to bond securely with the surface.

Transfer Media Types

Wax-based transfer paper – suitable for cotton fabrics and standard heat press use

•Sublimation transfer paper – used with polyester coatings or synthetic fibers

DTF film – made from PET or TPU, ideal for complex designs and multi-surface compatibility

Colorant Systems

•Pigment-based inks – for physical adhesion, good for cotton

•Disperse dyes – used in sublimation, bond chemically with polyester fibers


Heat transfer printing

Step-by-Step: Heat Transfer Printing

1. Start with a High-Quality Design
The first step in heat transfer printing is to create or choose the image or pattern you want to print. This artwork is typically prepared using graphic design software, with Adobe Illustrator being the most commonly used due to its powerful capabilities in producing vector graphics. To achieve high-quality prints, it's important to ensure the design file has the correct format and resolution.

2. Print Your Artwork onto Transfer Paper
After finalizing the design, it is printed in reverse onto heat transfer paper using a specialized printer equipped with compatible inks. Since the image will be flipped during the transfer, mirroring it beforehand is essential. Using premium transfer paper ensures the print comes out vivid, crisp, and professional.

3. Prepare the Surface for Transfer
Before applying heat and pressure, the substrate—the surface receiving the design—must be properly prepared. For fabrics, this often means pre-washing to eliminate oils, dirt, or finishing agents that might interfere with adhesion. Non-fabric materials like ceramics or metals should be thoroughly cleaned and, if needed, primed to ensure a successful transfer.

4. Set the Correct Heat Press Pressure
The amount of pressure applied during heat transfer printing should be adjusted according to the thickness of the material. Thicker fabrics generally require higher pressure to ensure proper heat penetration and adhesion, whereas thinner materials can be pressed using less force. In general, a medium to high pressure setting works well for most applications.


Material Thickness (mm) Recommended Pressure (psi) Temperature Compensation
<1 (Silk fabrics) 30–40 +5%
1–3 (Regular cotton) 40–60 Base
>3 (Denim) 60–80

-10%

Pressure Parameter Gold Standard


Heat transfer printing


5. Apply the Right Transfer Time by Type
Each type of heat transfer printing has its own recommended time settings. Here's a general reference:

Inkjet transfer paper: 14 to 18 seconds

•Dye sublimation transfer: 25 to 30 seconds

•Digital appliqué transfer: 20 to 30 seconds

•Vinyl transfer: 45 to 60 seconds

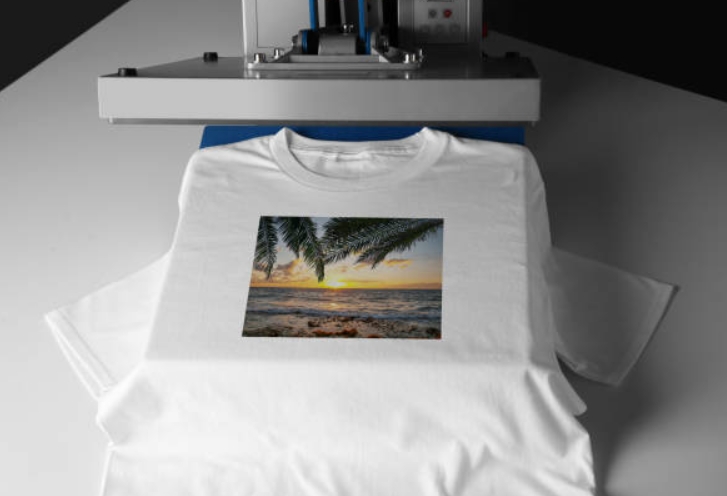

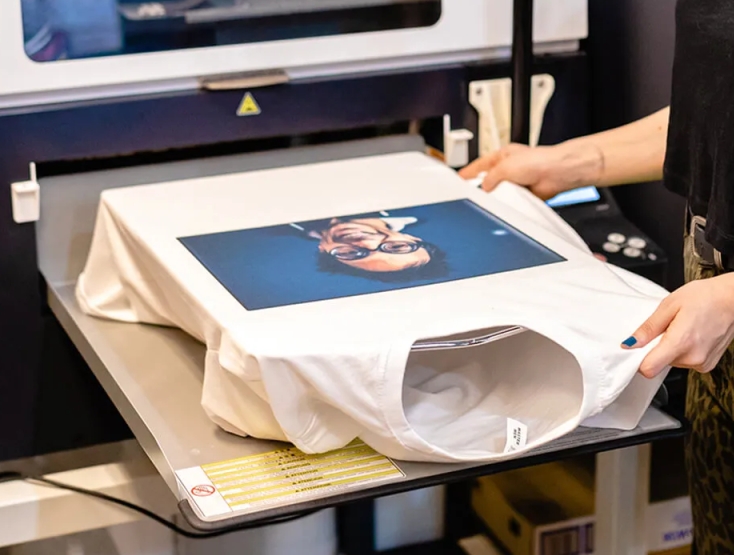

6. Position the Transfer and Add Protection
Begin by placing the item you wish to print on the platen of the heat press machine. Next, position the transfer paper face-up exactly where you want the design to appear. For vinyl or appliqué transfers, it's recommended to place a thin protective cloth over the transfer paper to prevent damage during pressing.

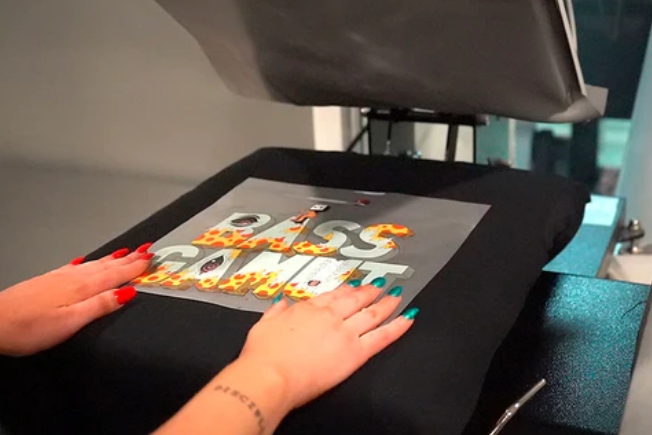

7. Use Heat and Pressure to Seal the Design
Once the substrate is prepped, the transfer paper carrying the printed design is carefully laid over it. A heat press machine is then used to apply the necessary heat and pressure. This process triggers the activation of the ink, dye, or vinyl, bonding the design firmly to the material's surface. The optimal temperature and pressing time will depend on the type of substrate and the specific transfer technique being used.

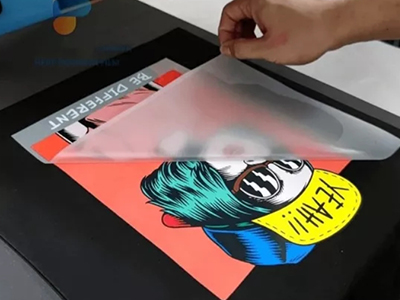

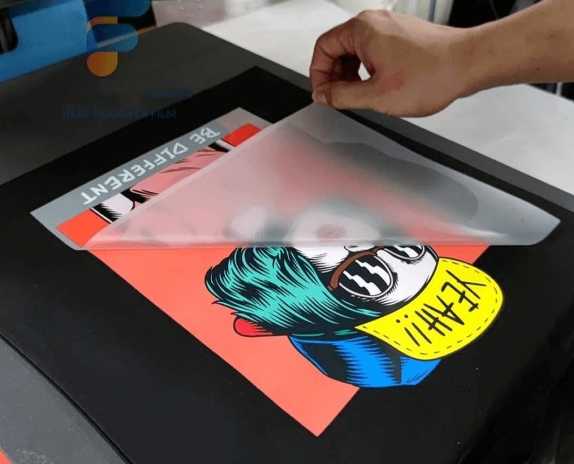

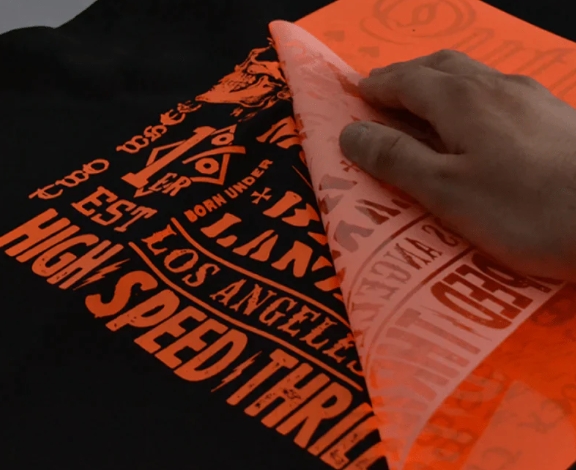

8. Peel the Paper for a Flawless Finish
After the heat and pressure cycle is finished, the transfer paper is carefully removed to reveal the design now bonded to the substrate. It's important to peel slowly and precisely to avoid issues like smudging or incomplete adhesion. When done correctly, this step results in a clean, vivid, and long-lasting print.


Heat transfer printing

Types of Transfer Printing

1. Film Release
Film release operates similarly to melt transfer, but with one key distinction: the design is embedded within an ink film that is fully transferred from the release paper to the textile under heat and pressure. The adhesion between the film and the fabric is stronger than that between the film and the paper, ensuring a clean release. While it can be applied to both continuous rolls and individual garment panels, it is primarily used for garment panel printing. In terms of commercial relevance, it ranks alongside sublimation transfer.

2. Melt Transfer
Melt transfer has been employed since the 1800s for transferring embroidery patterns onto fabric. In this process, the design is printed onto paper using wax-based ink, and then a hot iron is applied to the back of the paper to press it against the fabric. The heat causes the ink to melt and adhere to the material. This technique formed the foundation of Star printing—Italy's first widely adopted commercial transfer process from the late 1940s. Today, it remains in use through 'hot-split' transfer papers commonly found in garment decoration.

3. Wet Transfer
In wet transfer printing, water-soluble dyes are mixed into a printing ink and applied to paper to form the design. This design is then transferred onto a dampened textile under controlled pressure. The dye moves from the paper to the fabric through diffusion in the water layer. While innovative in concept, this technique is rarely used in modern production.

4. Sublimation Transfer
Sublimation transfer uses disperse dyes in the printed image. When heat is applied, these dyes sublimate—turning directly into vapor—and are absorbed by polyester or other synthetic fibers in contact with the heated paper. Among all transfer printing techniques, sublimation is considered the most commercially significant.

More read: Sublimation vs Screen Printing: What You Need to Know

Types of Heat Transfer Printing

1. Screen Printed Transfers
Screen printed transfers are made using the conventional screen printing method. The process starts by etching the design onto a mesh screen, through which ink is pressed onto transfer paper. Once the print is complete, the transfer paper is applied to the garment using a heat press. As with standard screen printing, each individual color in the design requires a separate screen pass.

2. Direct-to-Film (DTF)
Direct-to-Film printing, often abbreviated as DTF, is an emerging heat transfer technique that has quickly grown in popularity. The process begins by printing a design onto a specially coated film using a modified inkjet printer. After printing, a powdered adhesive is applied to the film, which is then heat-pressed onto the garment for permanent transfer.

More read: DTG vs Screen Printing: Selecting the Ideal Method for Apparel Printing

3. Dye Sublimation
Dye sublimation is a heat-based printing method that transfers dye directly into the fabric rather than applying it as a surface layer. Unlike other heat transfer techniques, this process chemically bonds the dye with the fibers, producing vivid, long-lasting prints with no raised texture—just a smooth, seamless finish.

4. Vinyl Heat Transfers
Heat Transfer Vinyl (HTV) is composed of polyurethane and is cut into custom shapes or lettering using a vinyl cutter. The cut design is positioned on the garment and applied with a heat press to permanently bond it to the fabric. HTV is available in numerous colors, finishes, and special effect options, offering great creative flexibility.


Heat transfer printing

Essential Equipment and Supplies for Heat Transfer Printing

To ensure a smooth and successful heat transfer printing process—especially when applying logos or custom graphics—you'll need the following essential tools and materials:

1. Computer: A reliable computer equipped with graphic design software is essential for creating and preparing your artwork before printing.

2. Heat Transfer Printer: Unlike standard printers, heat transfer printers are built specifically for use with transfer paper and heat presses. They require compatible inks and offer larger format capabilities.

3. Heat Transfer Ink: You can choose from several ink types depending on your needs. Inkjet ink is widely used for its cost-effectiveness, while pigment ink offers fade resistance. For dye sublimation, specialized sublimation ink is required.

4. Heat Transfer Paper: This type of paper features a special coating—typically a pigment polymer and wax blend—that forms a durable bond with fabric when heat is applied. Commonly available in sizes like 13" x 19", it accommodates large and detailed designs.

5. Cutter: A vinyl cutter is used to precisely cut your printed designs from the transfer paper, making them ready for heat pressing.

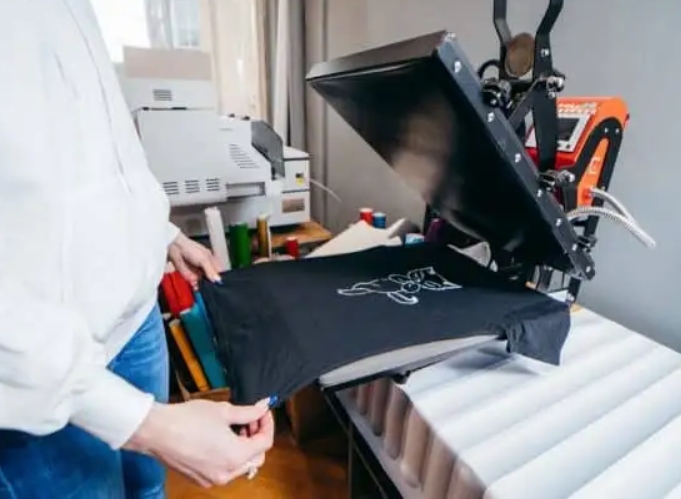

6. Heat Press Machine: Heat presses come in different models, such as clamshell or swing-away styles for apparel, and cylindrical presses for curved items like mugs and bottles.

7. Heat Pads: These heat-resistant pads, made from foam or silicone, sit beneath the product on the heat press to provide an even pressing surface.

8. Heat Tape: Use heat-resistant tape to secure the transfer paper in place during pressing, helping to avoid shifting or misalignment.

9. Heat Resistant Sheeting: Sheets made from Teflon or similar materials are placed between the heat platen and transfer paper to protect both the paper and equipment from heat damage and residue buildup.

10. Substrates: Substrates refer to the blank items you'll print on—anything from t-shirts and hoodies to drinkware and tote bags. They serve as the base for your heat transfer designs.


Heat transfer printing

Common Issues in Heat Transfer Printing

•Prints may fade or crack over time, especially if incorrect heat settings or low-quality materials are used

•Weak adhesion between the design and the substrate can result from insufficient pressure or improper surface preparation

•Transfers can appear inconsistent or patchy if the temperature, pressure, or timing is not uniform

•Color mismatches or dull results often stem from ink incompatibility or incorrect printer profiles

Conclusion

Heat transfer printing is a flexible and effective solution for decorating a wide range of surfaces. Thanks to its ability to produce sharp, vibrant, and long-lasting designs, it has become a go-to choice in sectors such as apparel production, promotional merchandise, and interior décor. Whether you're customizing clothing, manufacturing branded products, or adding creative flair to everyday items, heat transfer printing delivers dependable results and endless creative opportunities.

At Hanze, we empower printing professionals with a complete range of heat transfer and screen printing solutions. Our Direct to Film (DTF) product line includes industrial-grade printers, shakers, PET films, dryers, inks, powders, and heat press machines—engineered for consistent, high-quality output. In parallel, we offer a full suite of screen printing supplies, from precision mesh and squeegees to frames, inkjet films, and automatic screen printing machines. Whether you're producing custom apparel, promotional goods, or factory-scale textile runs, Hanze delivers reliable equipment, consumables, and OEM support tailored to your production needs. With us, your printing business scales with confidence.

FAQs:

Q1: Are heat transfer prints durable through multiple washes?

Absolutely. When applied correctly, heat transfer prints hold up well against frequent laundering, maintaining their color and adhesion without cracking or peeling.

Q2: Is heat transfer printing a good option for short-run orders?

Yes, it's an excellent choice for low-volume production, making it perfect for custom designs, prototypes, and personalized merchandise.

Q3: Can heat transfer printing handle detailed or photo-quality artwork?

Definitely. This method is ideal for complex graphics, including fine details, color gradients, and high-resolution photographic images.

Q4: How eco-friendly is the heat transfer printing process?

Heat transfer printing typically uses non-toxic inks and efficient transfer methods, making it a cleaner, more environmentally responsible alternative compared to traditional printing techniques.
