HZI-SPQ-SLG180B+
Spot Cleaning Gun
A high quality spot cleaning gun perfect for screen printers, embroiderers, retailers, tailors, drapery workrooms and other intermittent use applications.
The spot gun of choice for major apparel manufacturers.
Ergonomically designed.
For moderate duty applications.
It is perfect for T-shirt shops, embroiderers, retailers, tailors, drapery workrooms and other intermittent use applications.
Spot Cleaning Gun
A high quality spot cleaning gun perfect for screen printers, embroiderers, retailers, tailors, drapery workrooms and other intermittent use applications.
The spot gun of choice for major apparel manufacturers.
Ergonomically designed.
For moderate duty applications.
It is perfect for T-shirt shops, embroiderers, retailers, tailors, drapery workrooms and other intermittent use applications.

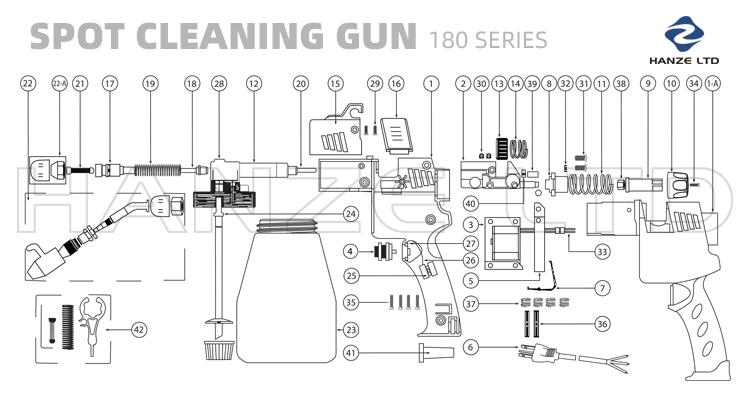

1 Housing
1-A Housing Cover
2 Motor Support
3 Armature
4 Trigger Switch
5 Armature
6 Cable with plug
7 Armature Spring
8 Control knob support
9 Control knob bolt
10 Control knob
11 Control knob Spring
12 Gun unit part
13 Adjusting roller
14 Adjusting roller spring
15 Hook
16 Cover
17 Pump Cylinder
18 Piston
19 Piston Spring
20 Intermediate push rod
21 Delivery valve spring
22-A Flat nozzle Head
22-B Adjustable nozzle head
23 Oil container
24 Suction pipe with strainer
25 Terminal black
26 Trigger switch
27 Protection cover
28 Pump cylinder locking screw
29 Hook locking screw
30 Gun unit locking
31 Control knob support locking screw
32 Washer
33 Ground wire
34 Control knob locking screw
35 Cover locking screw
36 Bolt
37 Buffer spring
38 Buffer part
39 Washer
40 Oil absorbing felt
41 Cover for power Cord
42 Accessory Pack
1 Housing
1-A Housing Cover
2 Motor Support
3 Armature
4 Trigger Switch
5 Armature
6 Cable with plug
7 Armature Spring
8 Control knob support
9 Control knob bolt
10 Control knob
11 Control knob Spring
12 Gun unit part
13 Adjusting roller
14 Adjusting roller spring
15 Hook
16 Cover
17 Pump Cylinder
18 Piston
19 Piston Spring
20 Intermediate push rod
21 Delivery valve spring
22-A Flat nozzle Head
22-B Adjustable nozzle head
23 Oil container
24 Suction pipe with strainer
25 Terminal black
26 Trigger switch
27 Protection cover
28 Pump cylinder locking screw
29 Hook locking screw
30 Gun unit locking
31 Control knob support locking screw
32 Washer
33 Ground wire
34 Control knob locking screw
35 Cover locking screw
36 Bolt
37 Buffer spring
38 Buffer part
39 Washer
40 Oil absorbing felt
41 Cover for power Cord
42 Accessory Pack
1. The proper spot removal by “shooting” the dirt out of the dirty subject should be carried out in a circular sweep, working from the outside towards the center.
2. The correct shooting distance from nozzle to the dirty surface is about 5~20cm. Bear in mind that the distance also alters by the density and the thickness of the object (example: fabric).
3. The screw-button at the back side of the gun is used to control the pressure, which is adjusted into a perfect working position by specialized engineer before ex-factory; so it is strongly recommended customer not to adjust it by their self to prevent malfunction of the product.
4. For extending the life of spray gun and not affecting the working efficiency, please maintain your spray gun by just several minutes after using. First, spray out the rest liquid, then take off the piston which near the nozzle head, and drop little nourish oil on it.
5. If the spray gun is out of order, please detach and examine it according to the instruction menu attached. If the reason is oxidization, please remove it by using deoxidization paste, then drop little nourish oil on it. If the reason is damage of parts, we can supply all parts at reasonable price. Please indicate us the part No., we assure you of our best service at all times.
1. The proper spot removal by “shooting” the dirt out of the dirty subject should be carried out in a circular sweep, working from the outside towards the center.
2. The correct shooting distance from nozzle to the dirty surface is about 5~20cm. Bear in mind that the distance also alters by the density and the thickness of the object (example: fabric).
3. The screw-button at the back side of the gun is used to control the pressure, which is adjusted into a perfect working position by specialized engineer before ex-factory; so it is strongly recommended customer not to adjust it by their self to prevent malfunction of the product.
4. For extending the life of spray gun and not affecting the working efficiency, please maintain your spray gun by just several minutes after using. First, spray out the rest liquid, then take off the piston which near the nozzle head, and drop little nourish oil on it.
5. If the spray gun is out of order, please detach and examine it according to the instruction menu attached. If the reason is oxidization, please remove it by using deoxidization paste, then drop little nourish oil on it. If the reason is damage of parts, we can supply all parts at reasonable price. Please indicate us the part No., we assure you of our best service at all times.
