HZI-HGX-5364/4

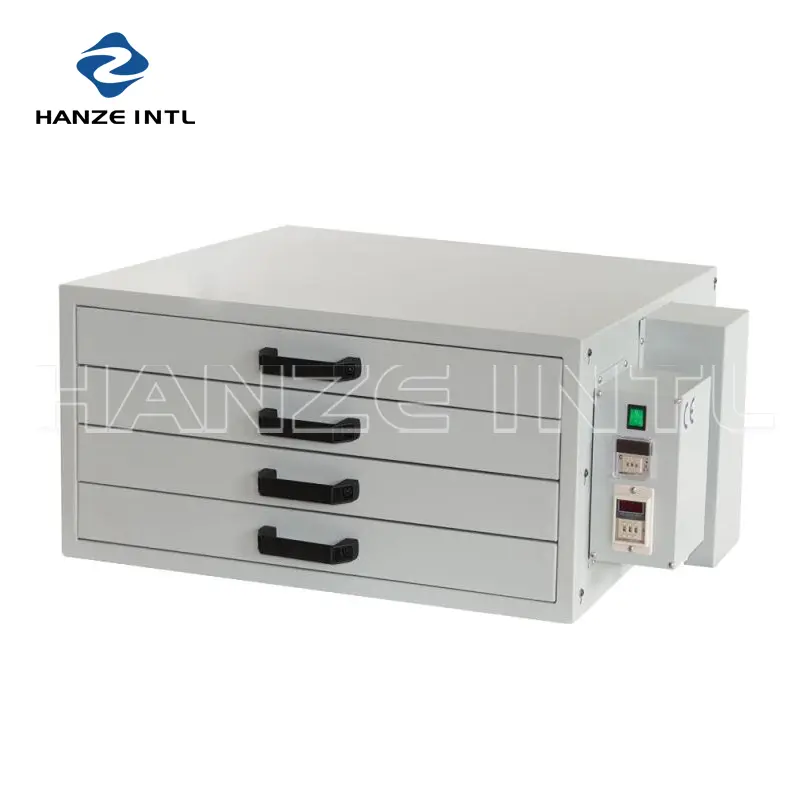

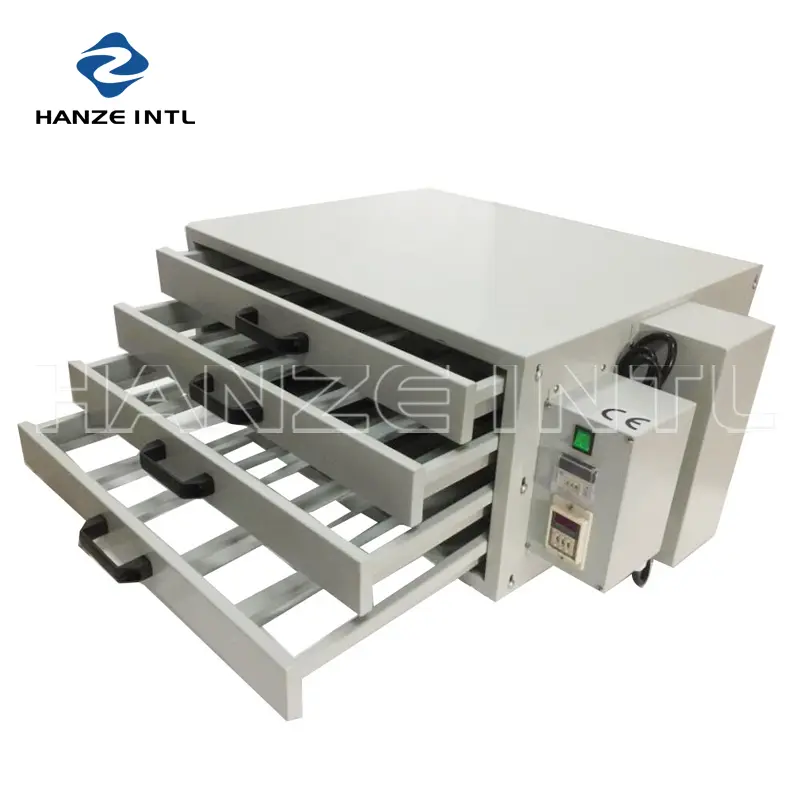

Screen Printing Drying Cabinet
Application:
The drying cabinet is a necessary drying equipment for screen frame pre-treatment, emulsion coating, preparations before and after exposure in the screen stencil making.
Specifications:
1. Maximum Screen Drying Area: 640×530×45mm
2. Power: 2000W
3. Max. amount of drying plate:4 pieces
4. Power voltage: 110V/60Hz
5. Max temperature: 75degree
6. Net Weight: 45 kg
7. Gross Weight: 60 kg
8. Packing : 1 strong plywood box(94*68*43cm)
1.According to the heat resistant temperature of silk screen, the heightest temperature of this machine is 78°C or so.
2.Under normal Conditions,set a temperature of 65C is appropriate.
3.The real temperature may have 2-3 C different in temperature because of opening and closing the drawer,room temperature during the course of actual operation, which is normal and does not influence using.
4.This machine will indicate the last set parameters when it is used again because of the automatic date memory functions of the equipped intelligent temp instrument.
